Wall fan Airos Eco Design Wall

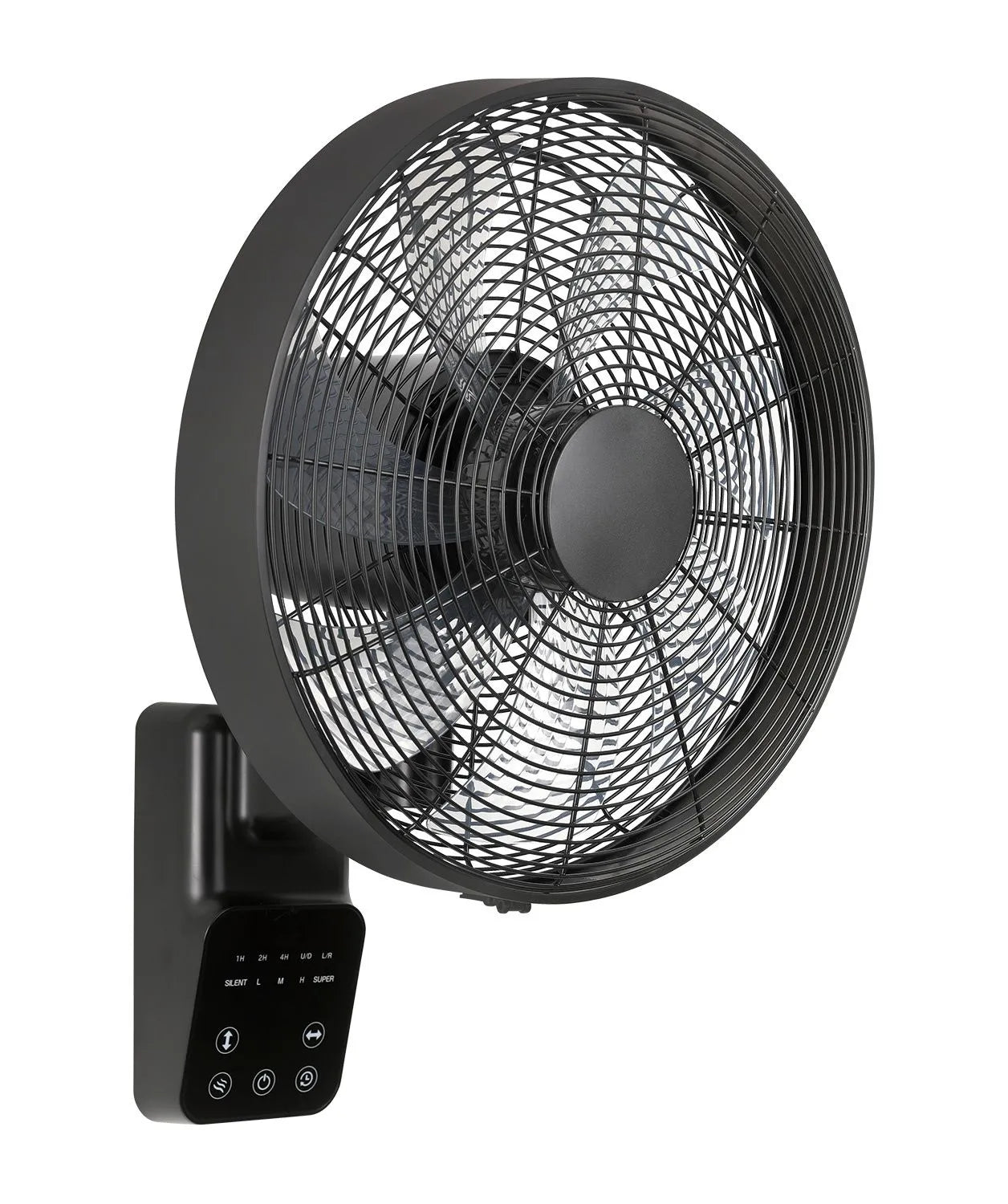

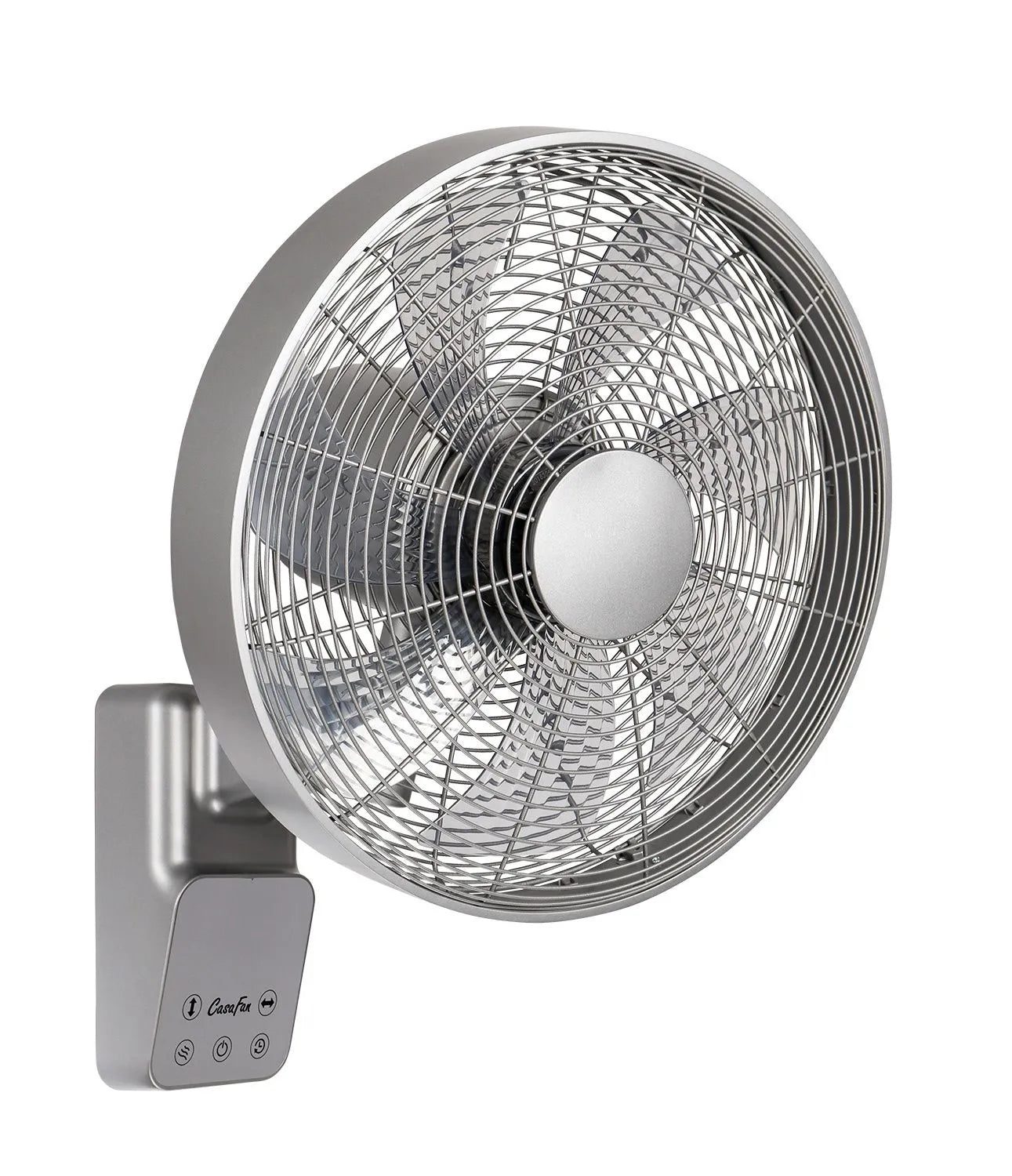

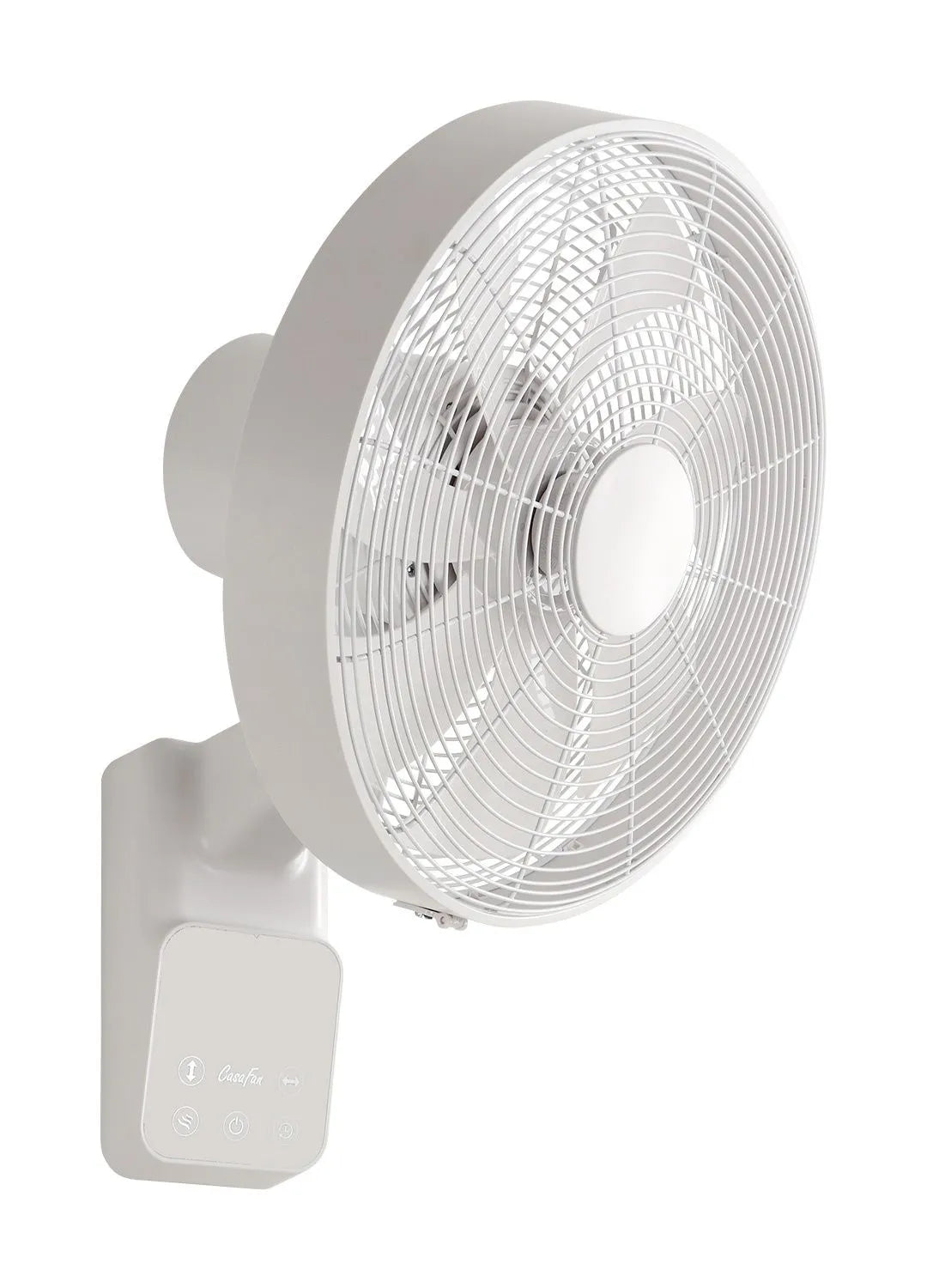

CasaFan AIROS ECO DESIGN WALL TS – Powerful wall fan with remote control

The CasaFan AIROS ECO DESIGN WALL TS is a modern and energy-efficient wall fan that was specially developed for demanding commercial use – be it in offices, workshops, sales rooms or fitness studios.

Thanks to its powerful yet economical DC/EC motor, the fan offers a maximum air flow of 3,885 m³/h with a power consumption of only 45 W. The 7-blade, aerodynamically optimized impeller ensures particularly even and quiet air distribution.

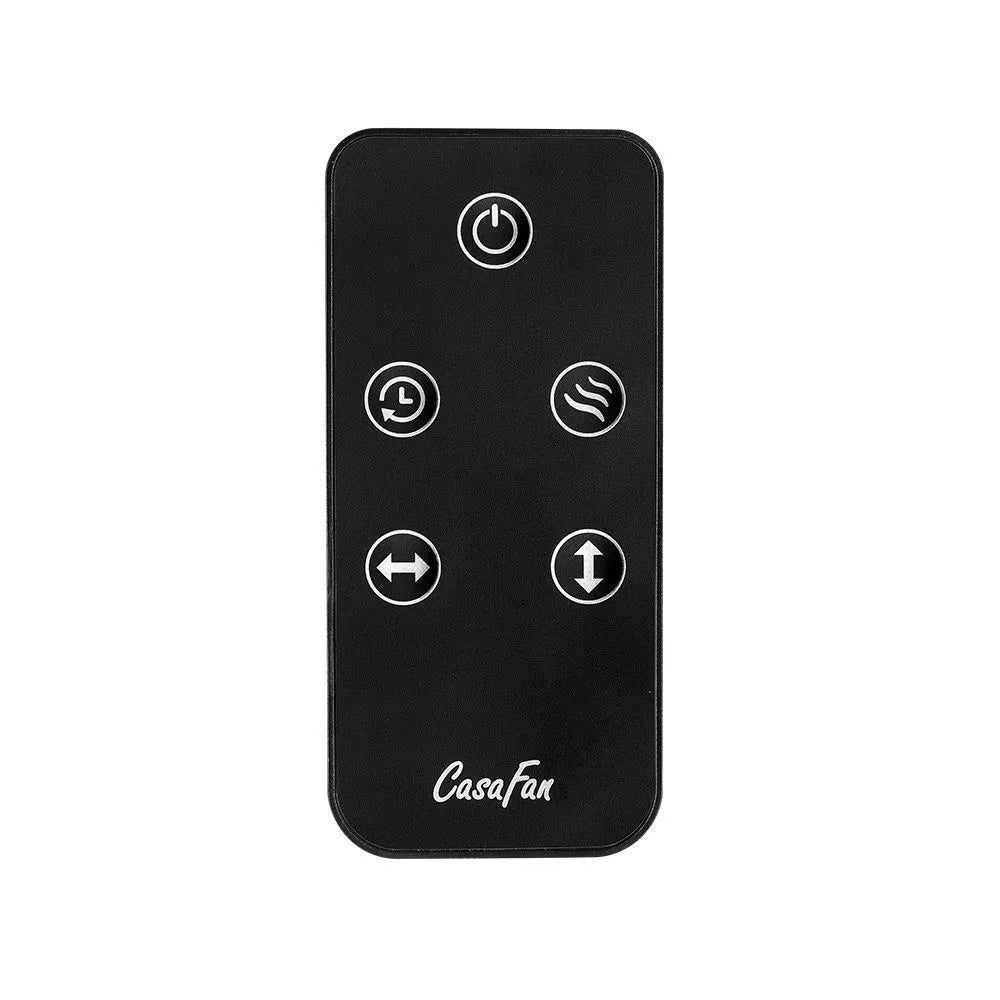

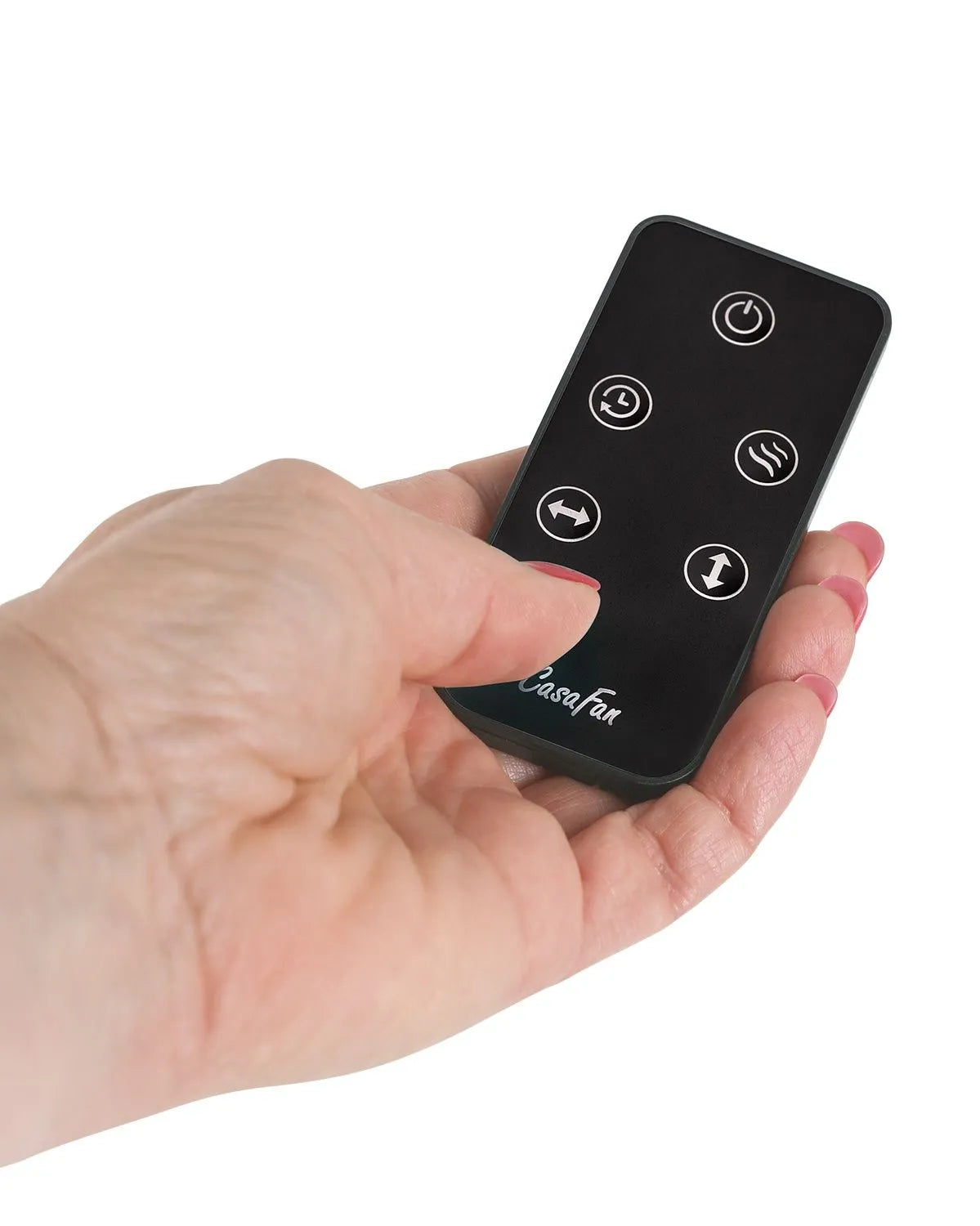

The convenient remote control allows control in 5 levels as well as individual oscillation in two axes :

• Horizontal up to 90°

• Vertical up to 53°

In addition, the air flow can be adjusted in three stages thanks to the tilting basket position – for maximum flexibility in everyday life.

Product highlights at a glance:

• Powerful DC/EC motor with only 45 W max.

• Maximum air flow: 3,885 m³/h

• Impeller diameter: 350 mm with 7 blades for optimized airflow

• 5 speed levels via remote control

• Oscillation horizontally (up to 90°) and vertically (up to 53°)

• Basket inclination manually adjustable in 3 levels

• LED display of all active functions

• Suitable for professional use
  (certified according to Machinery Directive 2006/42/EC Part 1)

• Including 1.8 m connection cable with Euro flat plug

Technical data:

• Fan type: wall fan

• Levels: 5

• Maximum speed: 1,220 rpm

• Voltage: 220–240 V / 50 Hz

• Motor power: max. 45 W

• Air flow: max. 3,885 m³/h

• Oscillation: horizontal 90°, vertical 53°

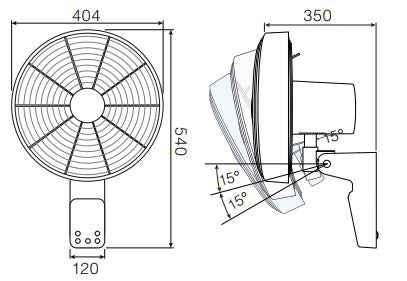

• Basket Ø: 404 mm

• Basket inclination: 3-way adjustable

• Connection cable: 1.8 m, Euro flat plug
