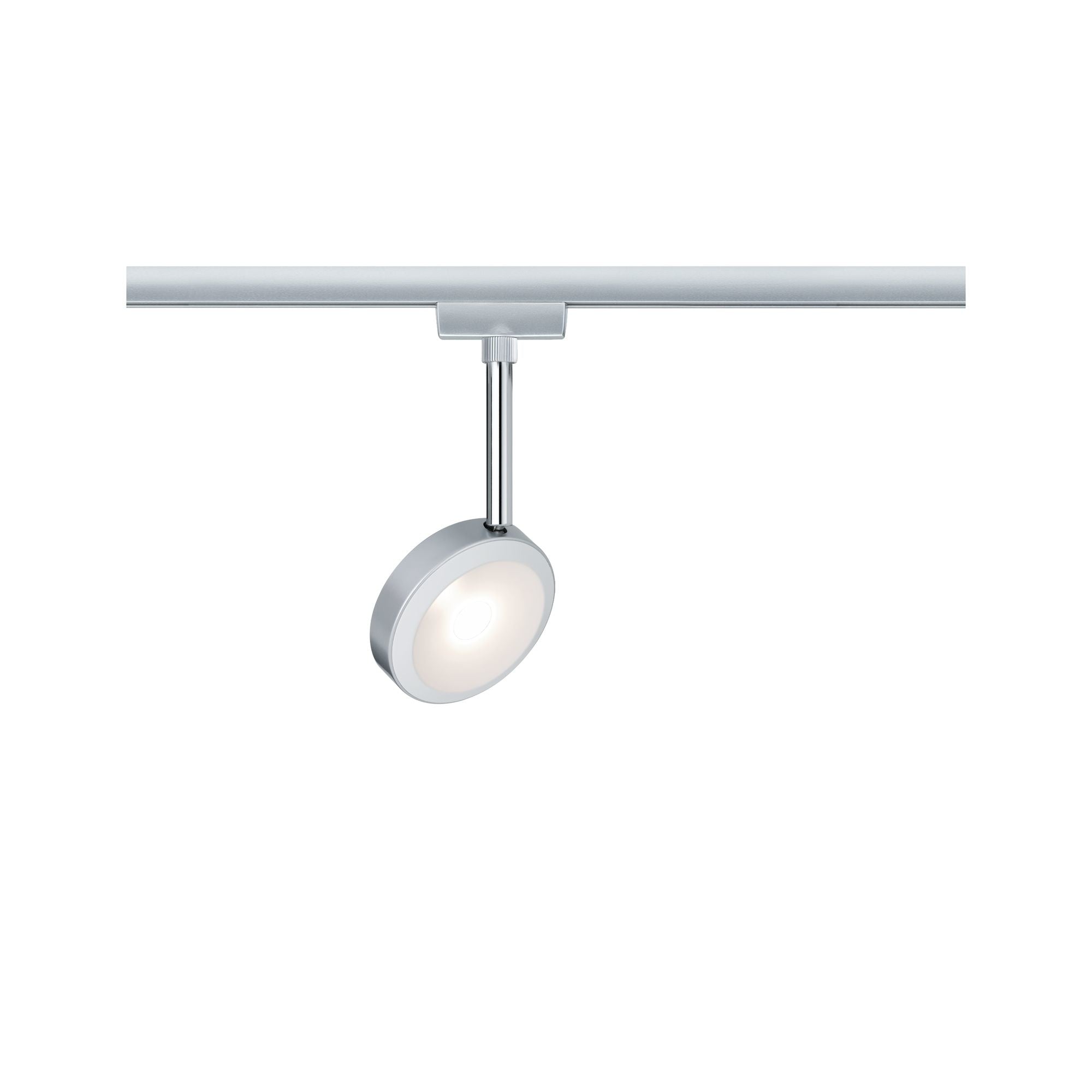

URail Spot Discus 1x5W chrome matt chrome 230V metal/plastic dimmable
Shipping calculated at checkout
Automatic deduction at the checkout
Produktinformationen
- Only suitable for URail rails
- Surface/color: matt chrome
- URail system light including assembly instructions
- Includes light source (fixed in the lamp)
| Dimension (height x width x depth): | H: 215 x W: 29 x D: 95 mm |
| Marketing type: | Single component |
| Bulbs included: | ✓ |
| power consumed: | 5.5W |
| Tension: | 230V |
| Color: | Chrome, matt chrome |
| Material: | plastic, metal |
| Apparent power: | 5.5VA |
| Shape: | around |
| Dimmable: | with dimmer R+C for electric transformer+230V lamps |
| Can be used with the following dimmers: | Paulmann URail 500.50/-51, Paulmann URail 952.94/-95, Paulmann URail 976.53/-54, RC Busch-Jäger 6513U-102, RC Gira 0307 00/I02, RC Jung 225 T DE, RC Merten MEG 5136-0000, RC REV Ritter 501448551, RLC Müller Paladin 873 030 LED |
| Protection class: | Protection class II |
| Technology: | LED |
| Lifespan: | 30,000 hours |
| Equipment: | 5W |
| Number of equipment: | 1x |
| Beam angle: | 45° |
| Beam angle LED module: | 121° |
| Color temperature: | 2700K, 2,700K |
| Luminous flux LED module: | 440 lm |
| Equivalent to incandescent lamp: | 45W |
| Ignition time <: | 0.0s |
| Rated luminous flux (lumens): | 430 lm |
| Dimensions |
Length
: 215 mm Width : 29 mm Height : 215 mm |
| Dimmable | Yes |
| Color | Matt chrome, chrome |
| Kelvin | 2700 |
| Light source | including |
| Lumen | 375.6 |
| Protection class | Protection class II |
| Information according to the EU Product Safety Directive | Paulmann Licht GmbH Quezinger Feld 2 31832 Springe Germany info@paulmann.de |
5-year Paulmann warranty – reliable & fair
Even with the best quality, issues can occasionally occur. To make sure you are covered, the German manufacturer Paulmann provides a 5-year warranty on its products in addition to statutory warranty rights.
The warranty covers proper functionality under correct installation and normal use (max. 4,500 operating hours per year). Excluded are rechargeable batteries, batteries and replaceable light sources.
If a problem should occur, simply contact us – we will handle the process directly with Paulmann for you.
➜ View the official Paulmann warranty conditions
Note: your statutory warranty rights naturally remain unaffected.
Frequently asked questions about the Paulmann URail system
Do you also offer shortened URail rails?
Yes, of course 😊 For the 2 m , 1.5 m and 1 m variants we can supply the rails in your desired size .
You can easily select the desired length directly on the product page . Please note: The right of withdrawal does not apply to shortened rails, as they are individually adjusted.
What do I need to get started with the Paulmann URail system?
For a functioning URail system you need:
1️⃣ A power supply
2️⃣ Rails in your desired length
3️⃣ Connectors (if you combine multiple rails)
4️⃣ Lights of your choice
💡 Difference between end and middle feed:
- An end feed supplies the system with power from one end of the rail .
- A center feed is placed between two rails – ideal if you want to install lights in both directions.
Can I expand my existing URail system?
Yes, very simple 👍
URail is modular . You can add additional tracks, connectors, or lights at any time. Just make sure the total power doesn't exceed 1000 watts .
Is the URail system dimmable?
Yes, many URail lights are dimmable , provided they are operated with a suitable dimmer and dimmable bulbs .
In the product details you will find information about whether and which dimming function is possible.
Do you also offer support in planning a URail system?
With pleasure! 🤗
If you are unsure which components you need or how to combine them, we will advise you personally .
Just write to us – we will help you plan your system appropriately and safely .
Does URail require a transformer or power supply?
No 😊 The Paulmann URail system works with 230 V mains voltage and can be connected directly to the power supply .
An additional transformer is not required , making installation particularly simple and flexible.
Can I integrate lights from other brands or pendant lights into the URail system?
Yes, that is possible 🙌 With a suitable URail pendant adapter you can integrate many pendant lights from other manufacturers into your system.
Please note:
- Only pendant lights with a 230 V connection are compatible – no 12 V lights with a transformer .
- ⚠️ Other 1-circuit lighting systems (e.g. from SLV, Nordlux or other manufacturers) are not compatible with URail because they have different contacts and fastenings .
This is how you can customize your URail system – with Paulmann lights or your own favorite pendants ✨
