Linion Power Channel 230/24V 100VA matt chrome 1m
Tax included. Shipping calculated at checkout
Automatic deduction at the checkout
Within Germany
Produktinformationen

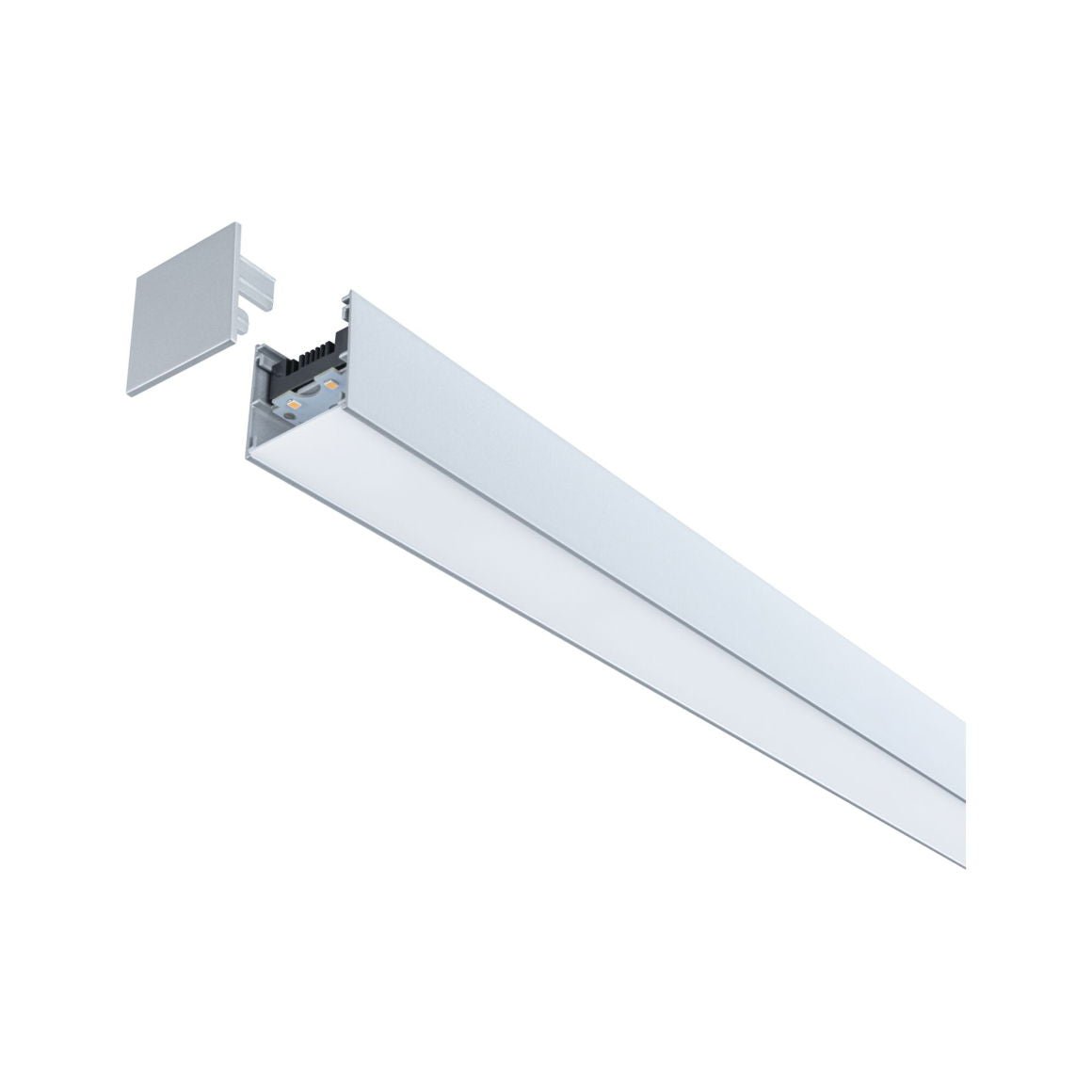

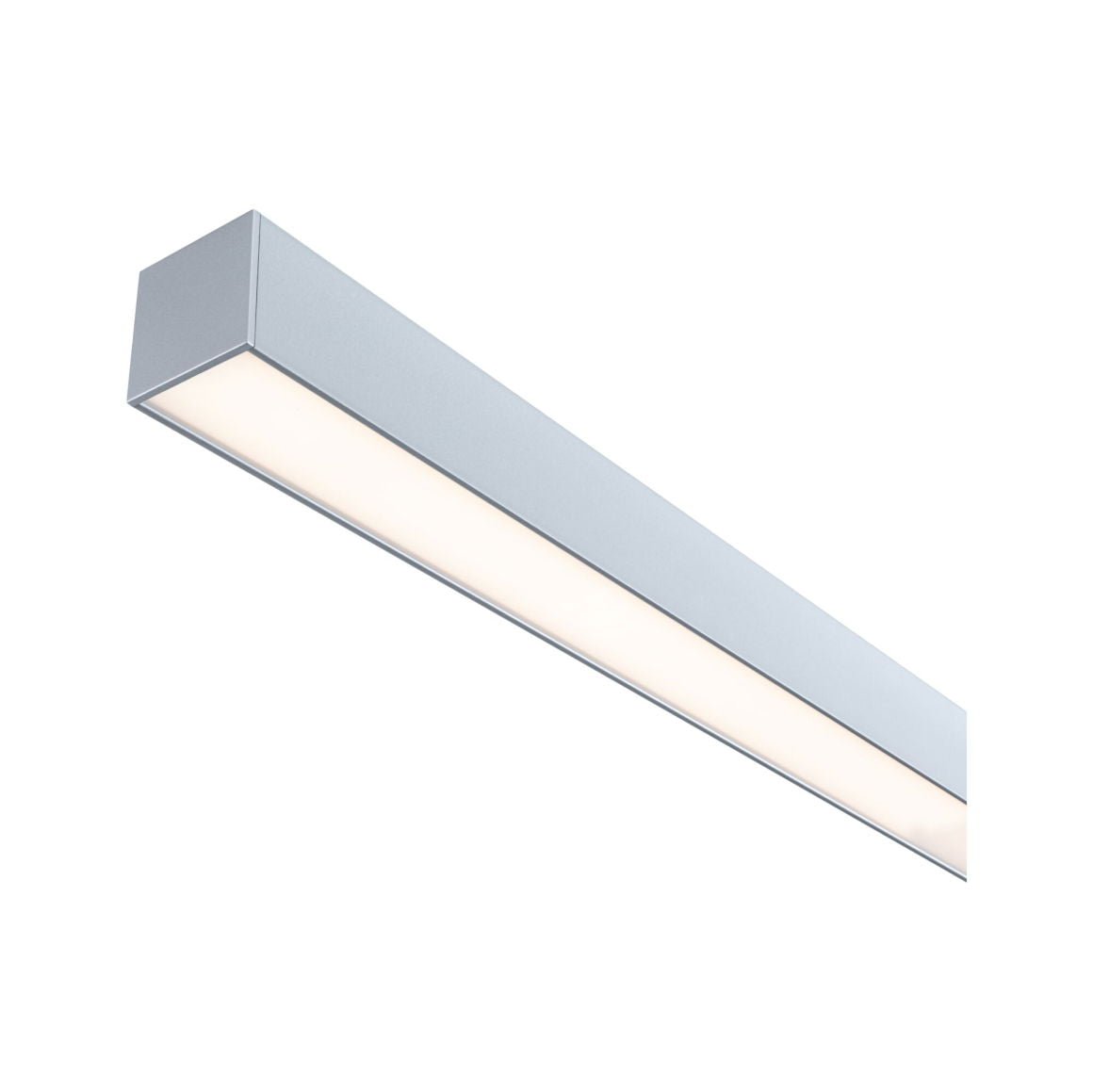

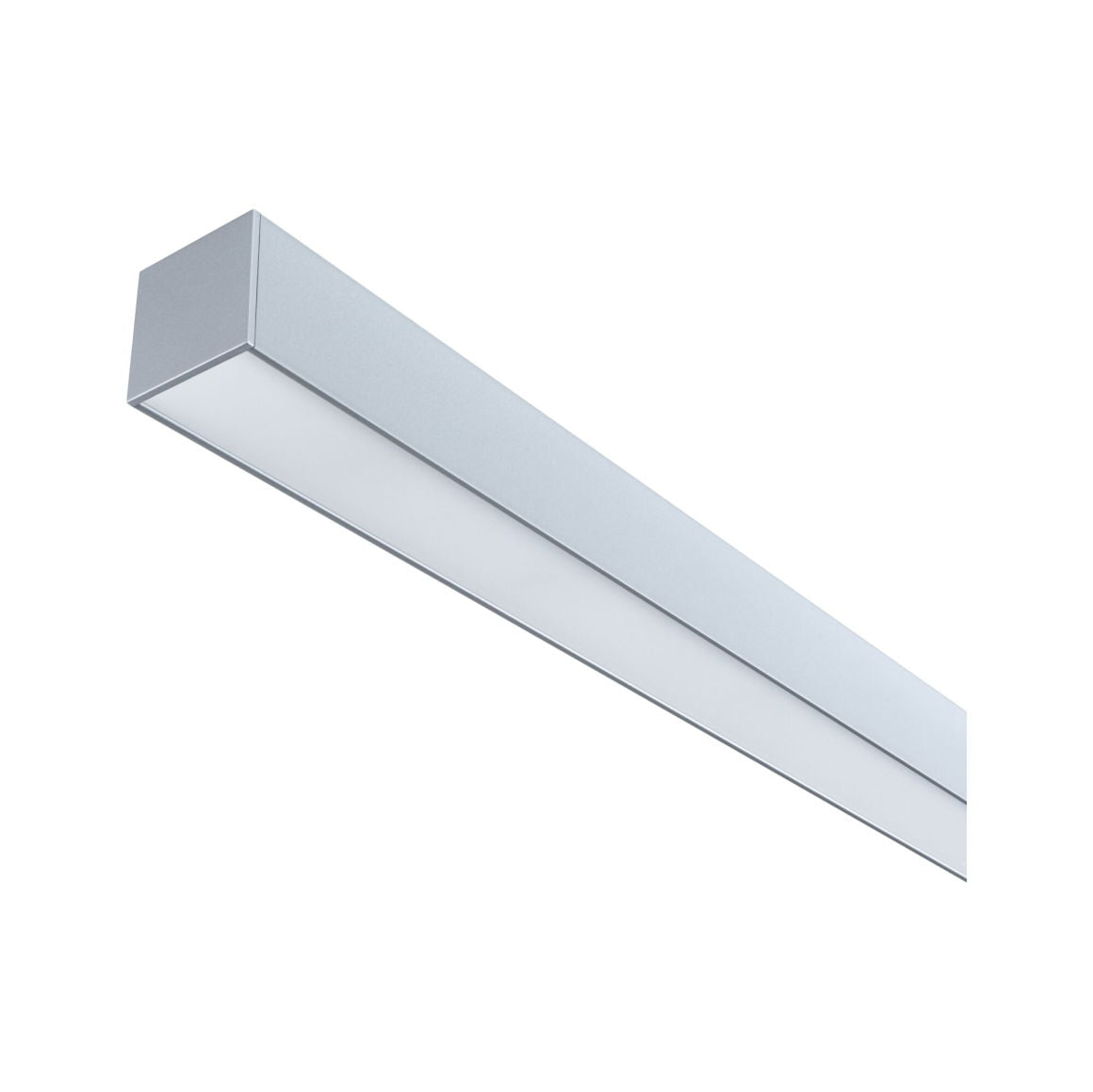

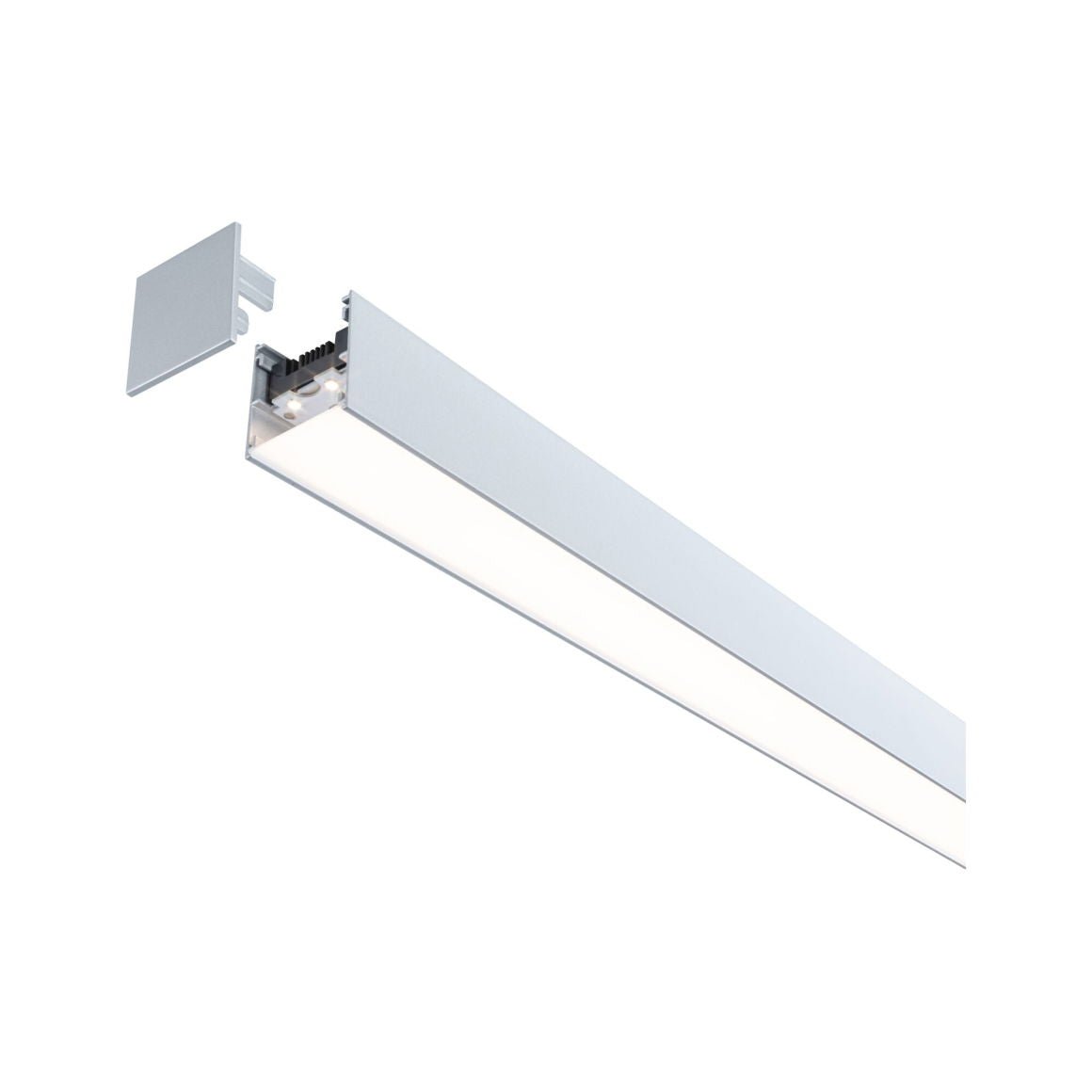

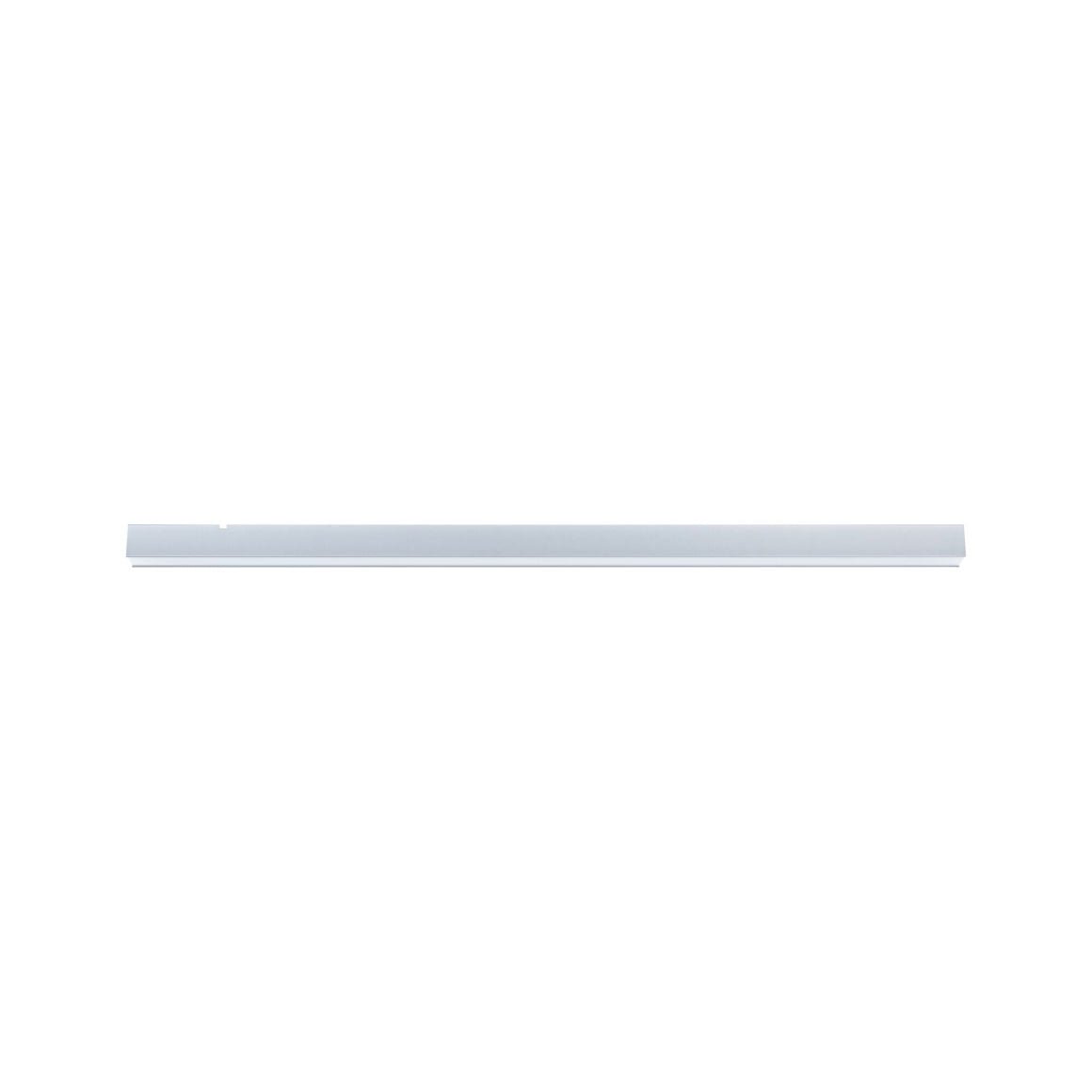

Linion Power Channel 230/24V 100VA matt chrome 1m

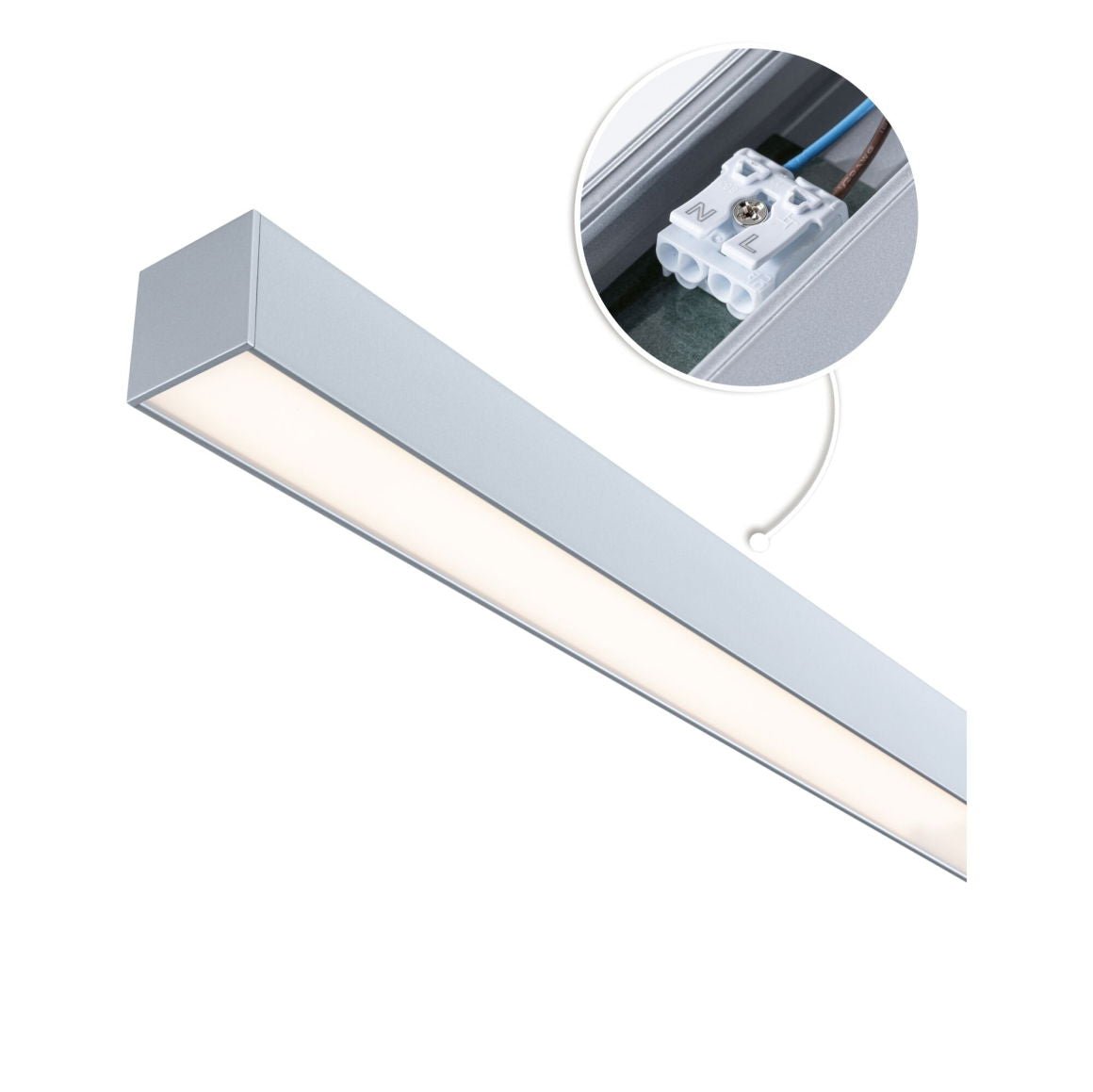

- Feed-in module for Linion light channel system
- Connection of maximum 80 W possible
- Flowing light lines through modular components

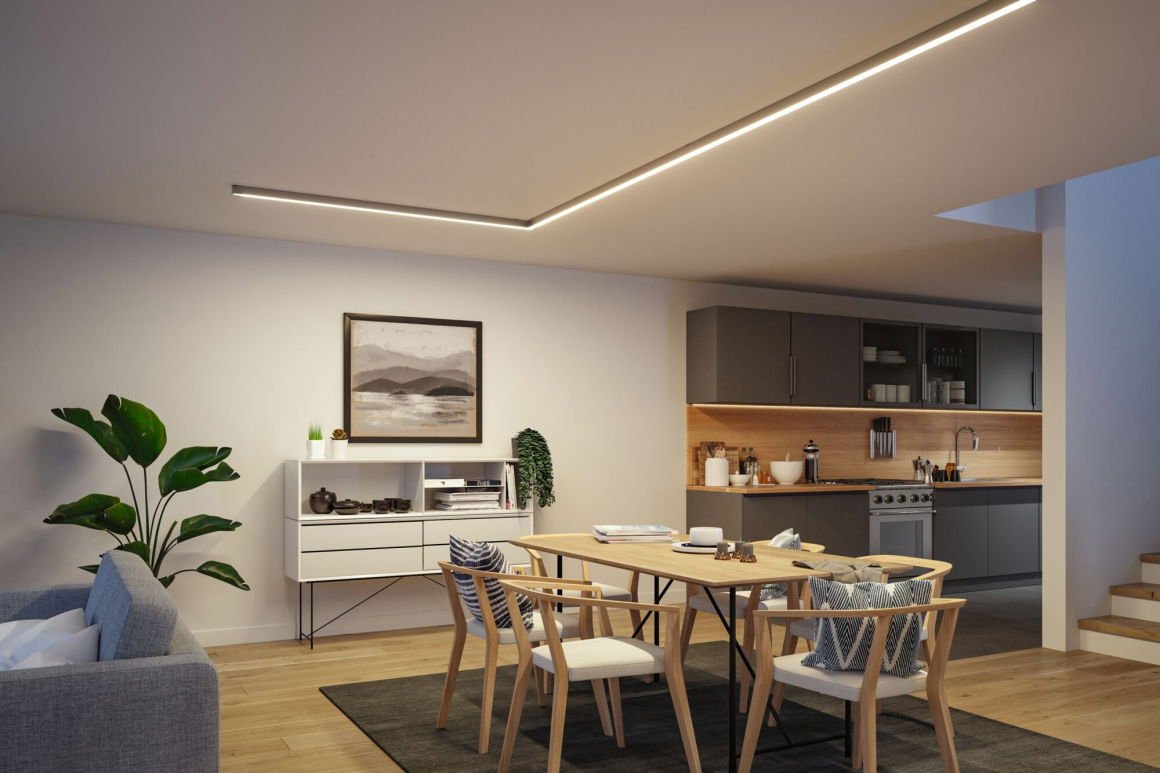

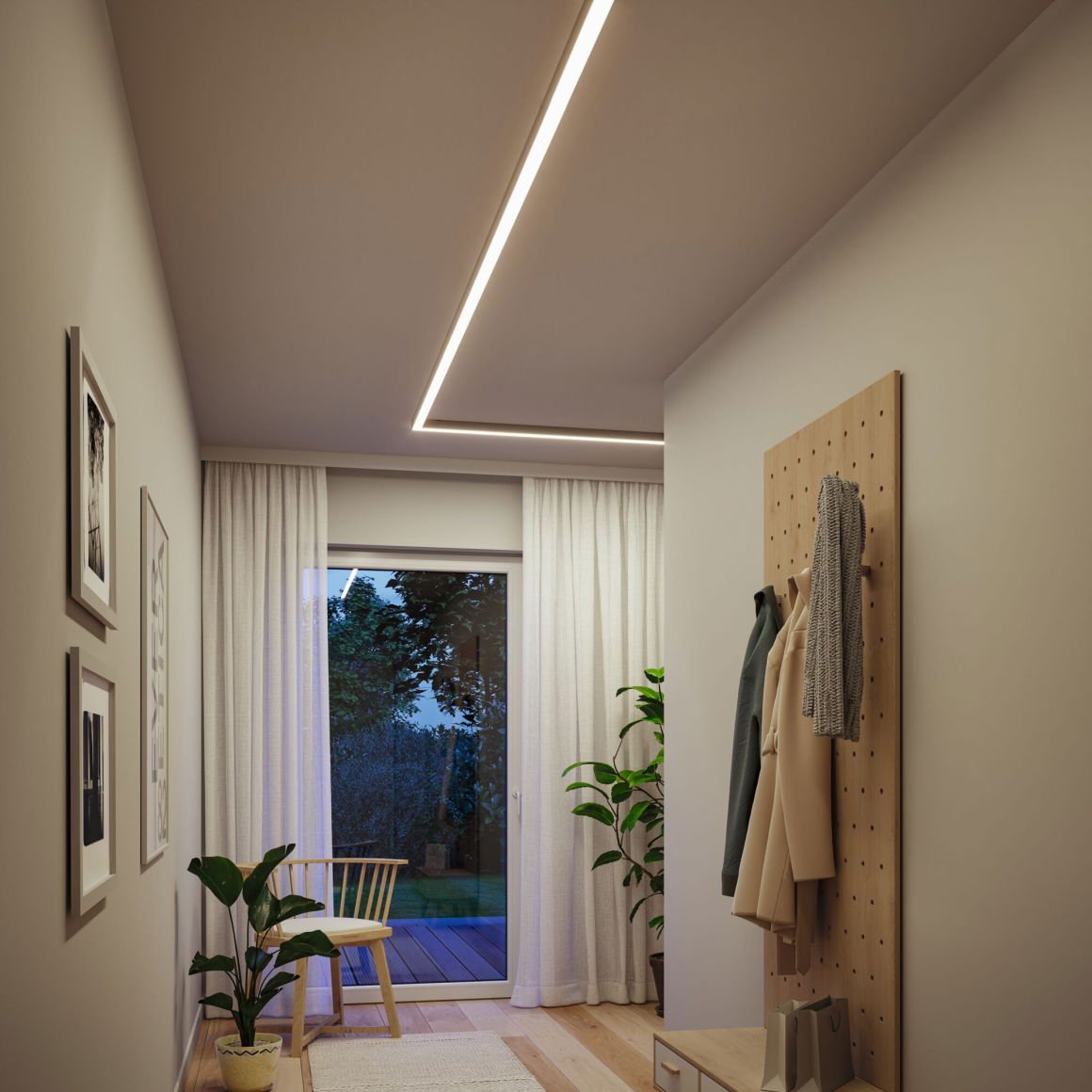

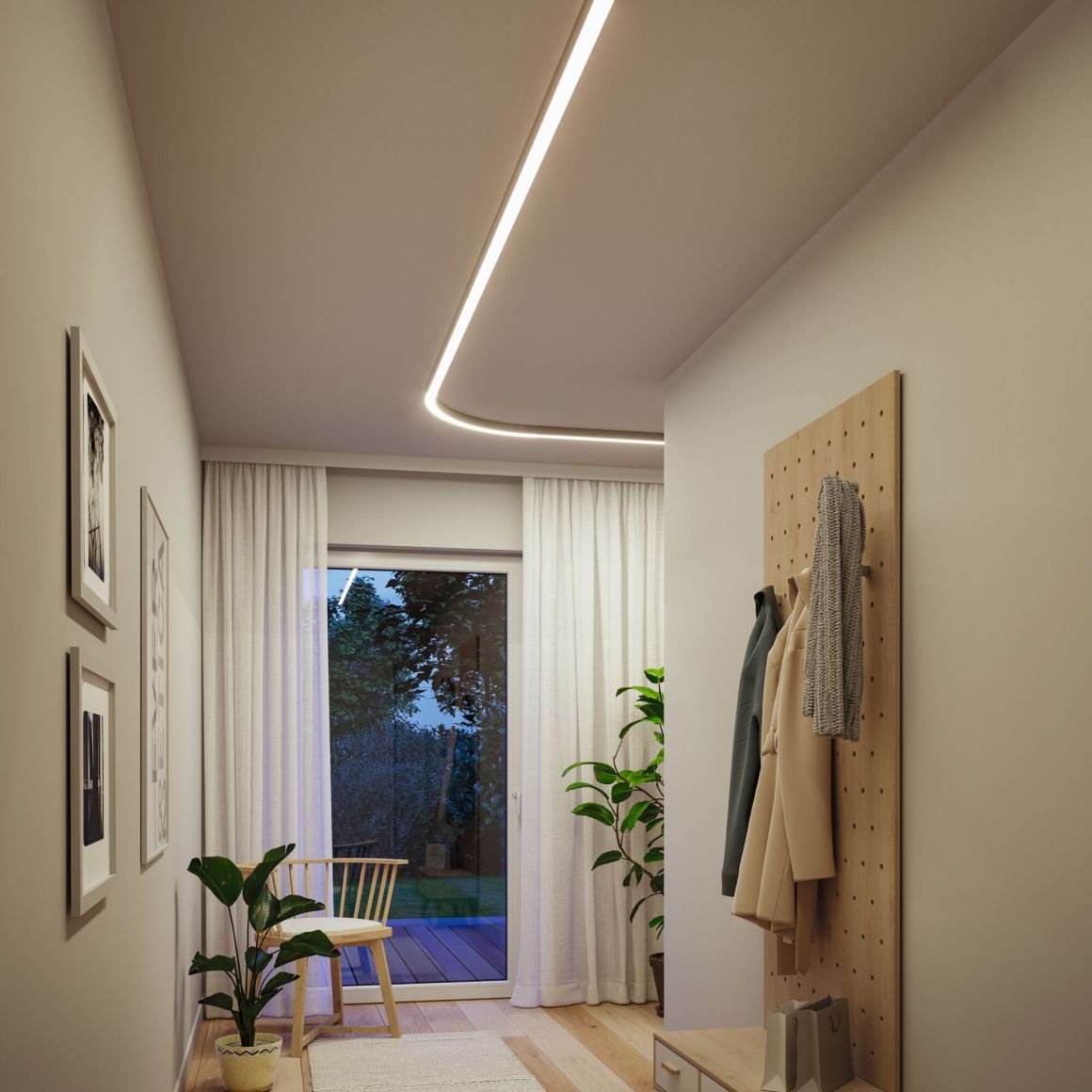

- Uniform and glare-free light in the living area
- High-quality aluminum housing
- Color temperature: 3000K - Warm white
- Suitable for a system length of up to 5m

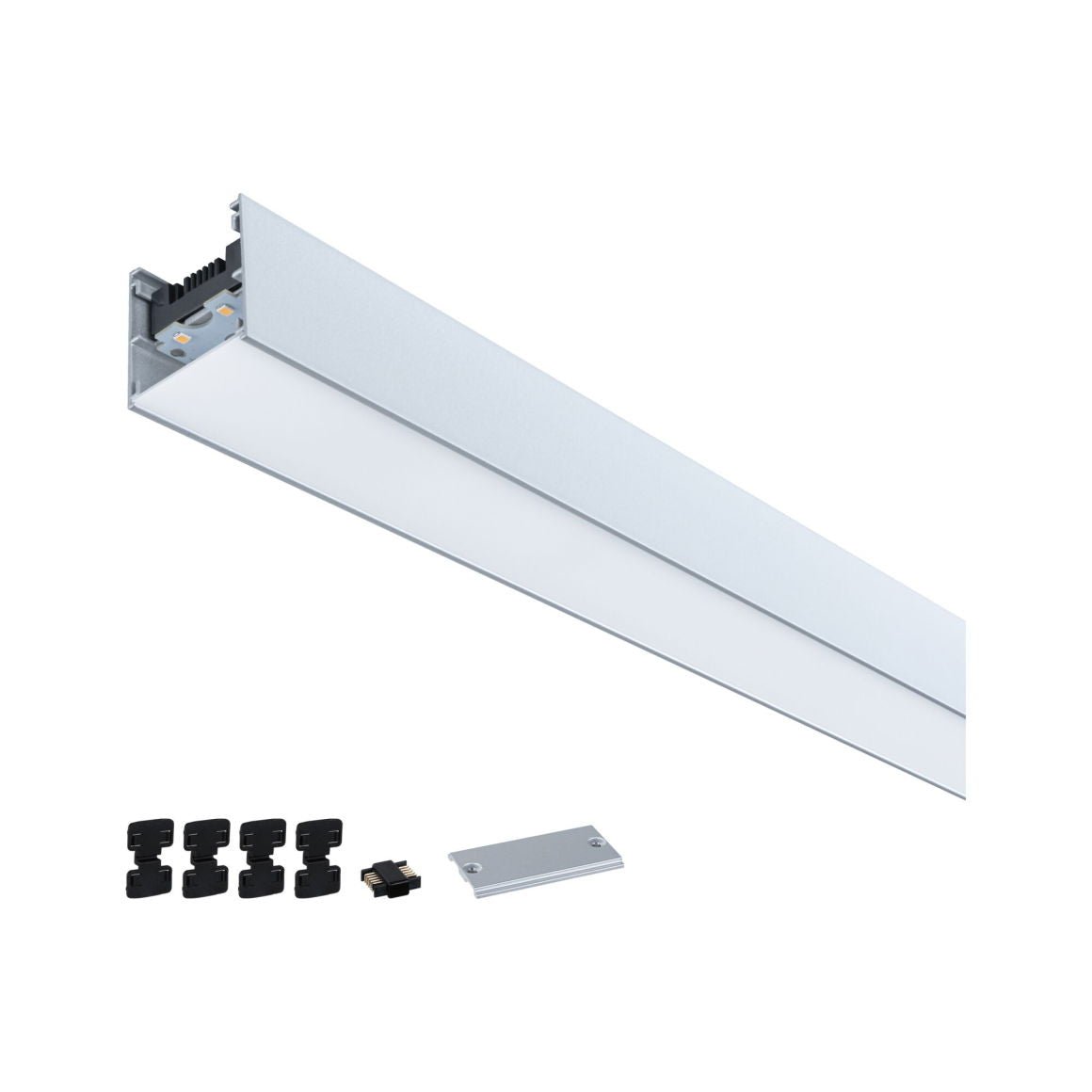

- Included in delivery: Feed-in including connectors, end caps and stability plate
- Easy installation with "Plug & Play" connection
Dimensions | |
---|---|

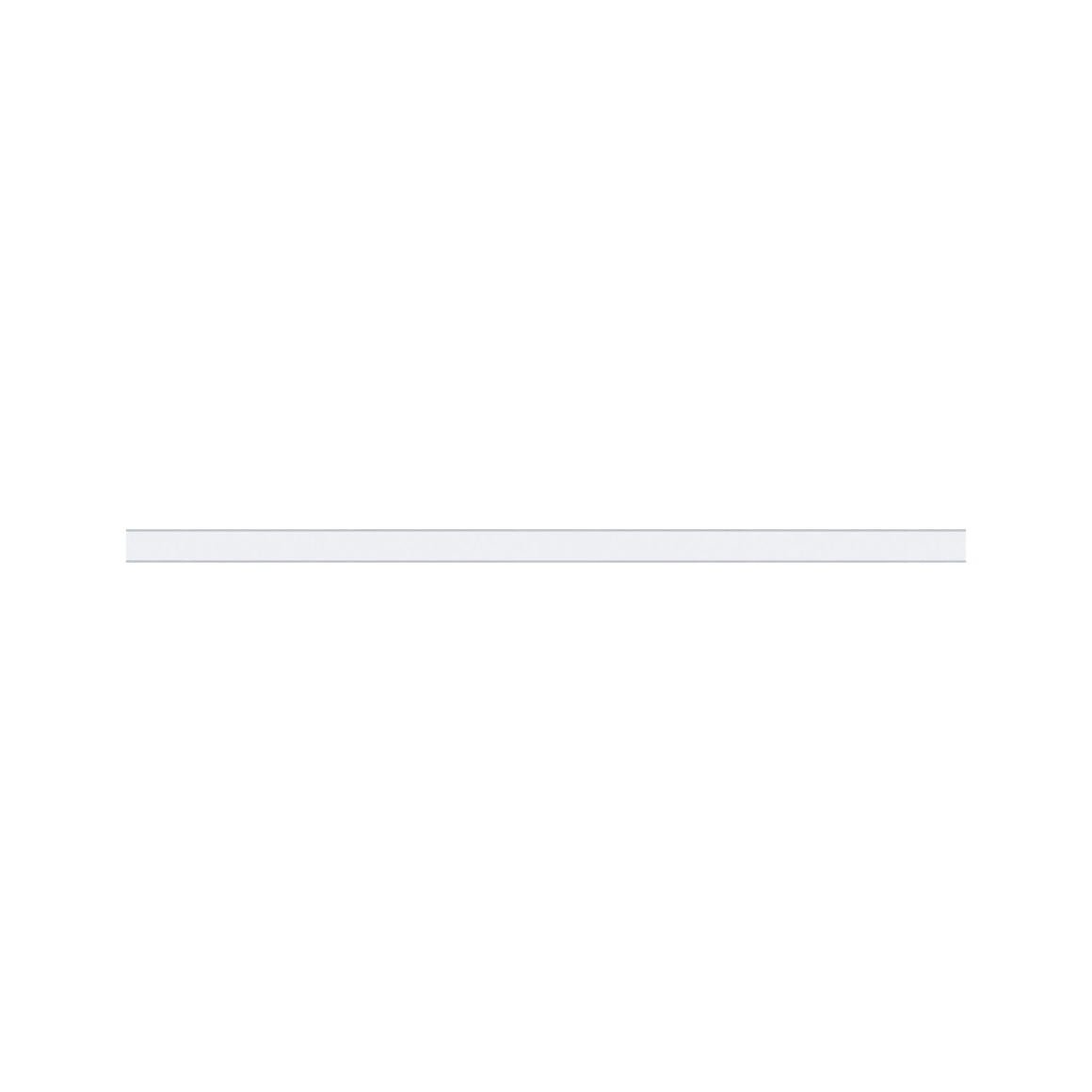

Dimensions (height x width x depth) | H: 40 x W: 1000 x D: 40 mm |
length | 1 m |
Design and material | |
---|---|
Color | Matt chrome |
material | aluminum |
Markings | |
---|---|
WEEE Reg. No. | DE 39236390 |
life | |
---|---|
life | 30,000 hours |
Light properties | |
---|---|
Color temperature | 3000 K |
Color temperature range | 3000 K |
Color temperature (text) | Warm white |
Nominal luminous flux | 1040 lm |
Luminous flux LED module | 1780 lm |
Color rendering index | > 80 Ra |
Lamp properties | |
---|---|
Assembly | 8.5 W |
Technology | LED |
Dimmable | No |
Including light bulbs | ✓ |
adjustability | firmly |
Max. power range | max. 2x100 W |
IP protection | IP20 |
Number of components | 2x |
Protection class | Protection class II |
Number of LEDs per meter | 168 |
Power consumption | 20 W |
transformer | |
---|---|
Transformer power range | 100 VA |
Apparent power | 24 VA |
Angaben gem. EU-Produktsicherheitsrichtlinie | Paulmann Licht GmbH Quezinger Feld 2 31832 Springe Germany info@paulmann.de |
