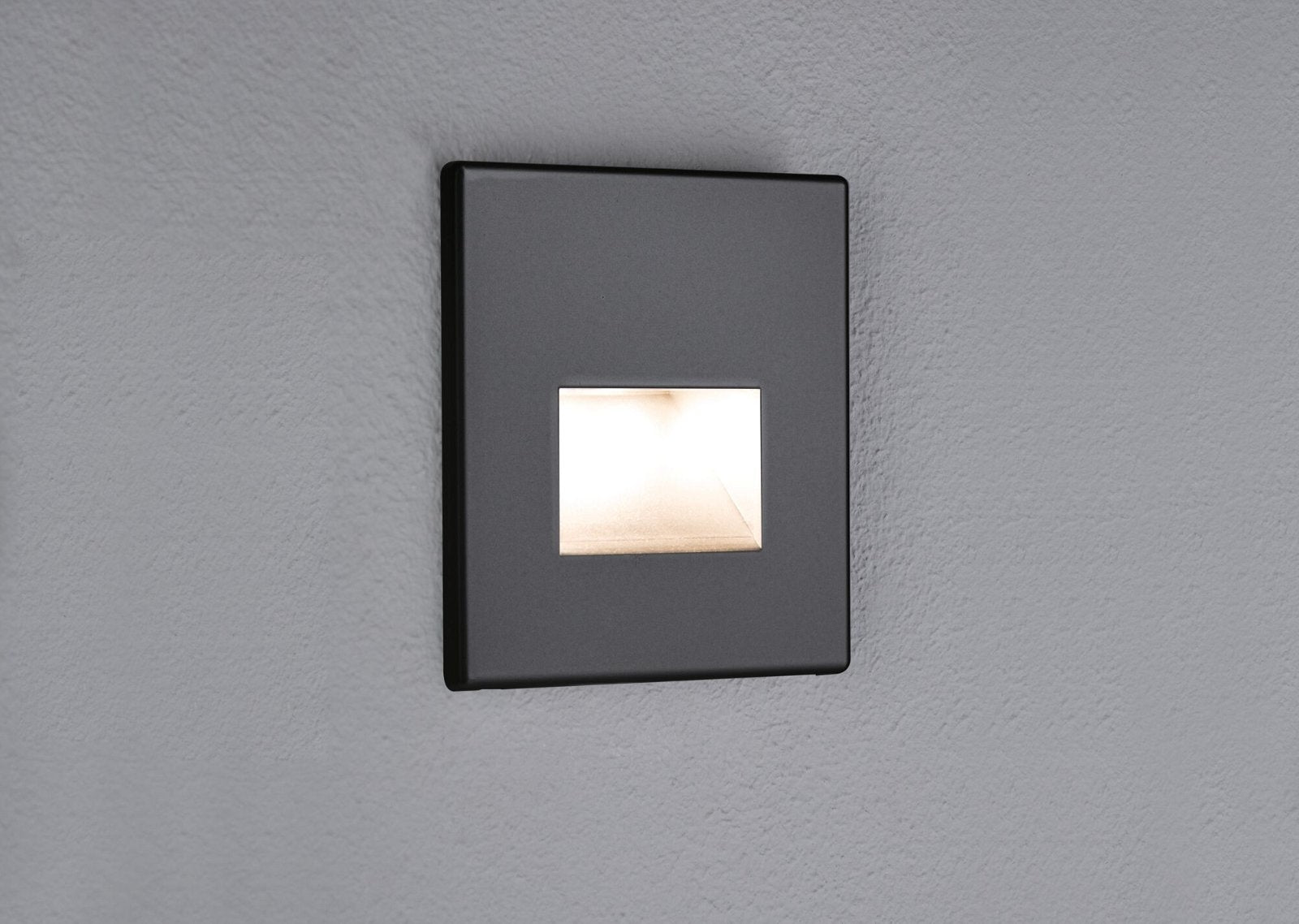

LED recessed wall light Edge Quadro square 80x5mm 1.2W 50lm 230V 2700K matt black
Product information
LED recessed wall light Edge Quadro square 80x5mm 1.2W 50lm 230V 2700K matt black

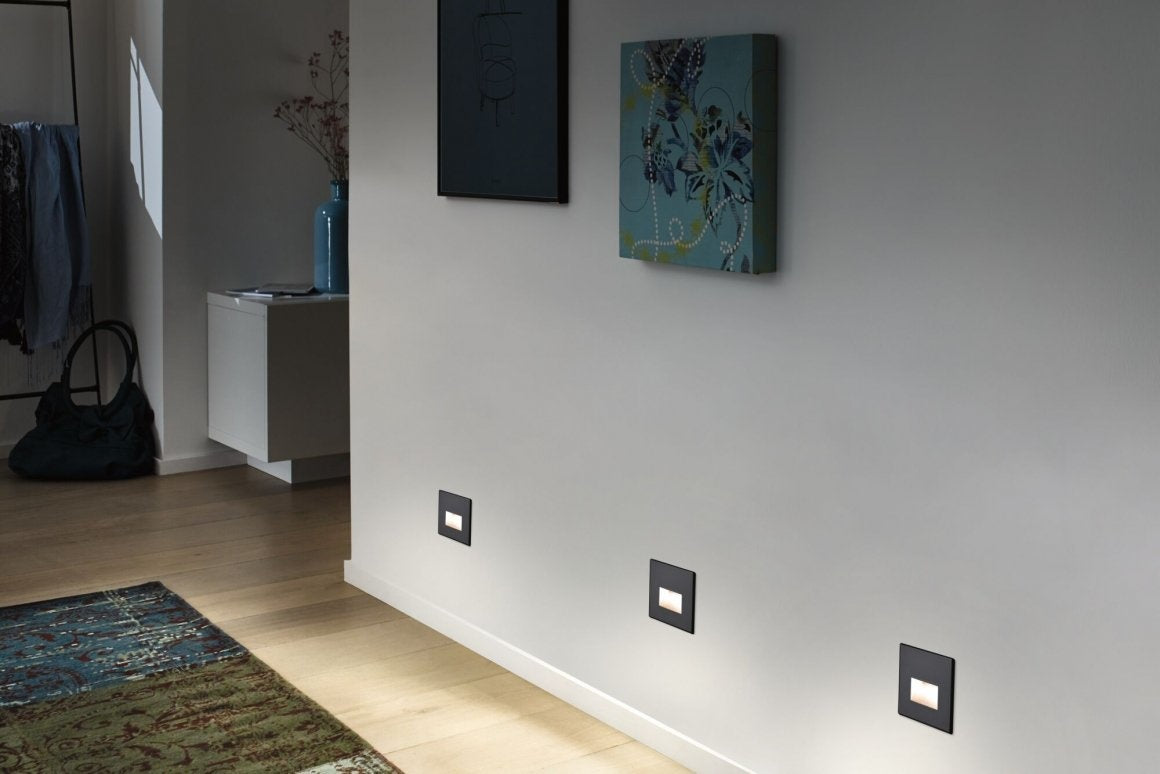

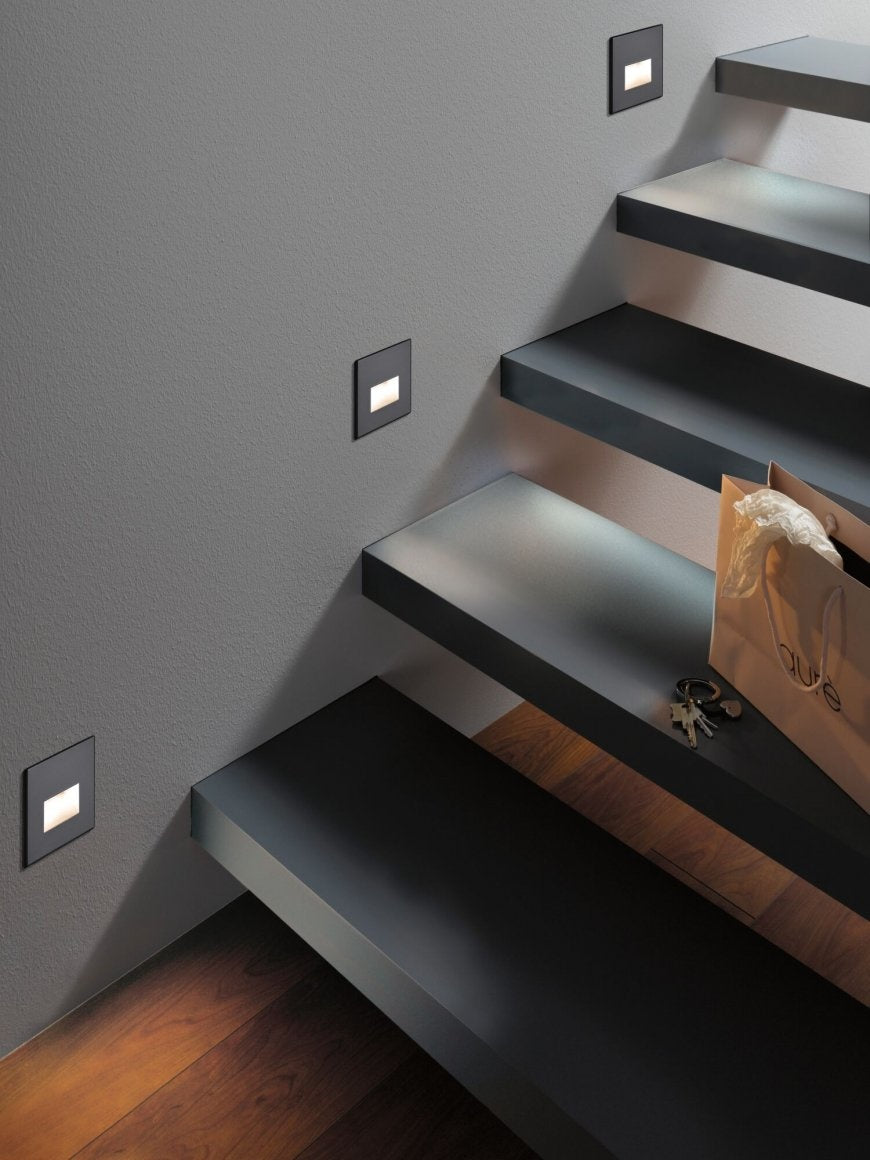

- Decorative lighting effects highlight the wall
- Efficient LED technology
- LED bulbs (permanently installed) included in delivery
- Color temperature: 2700K - warm white

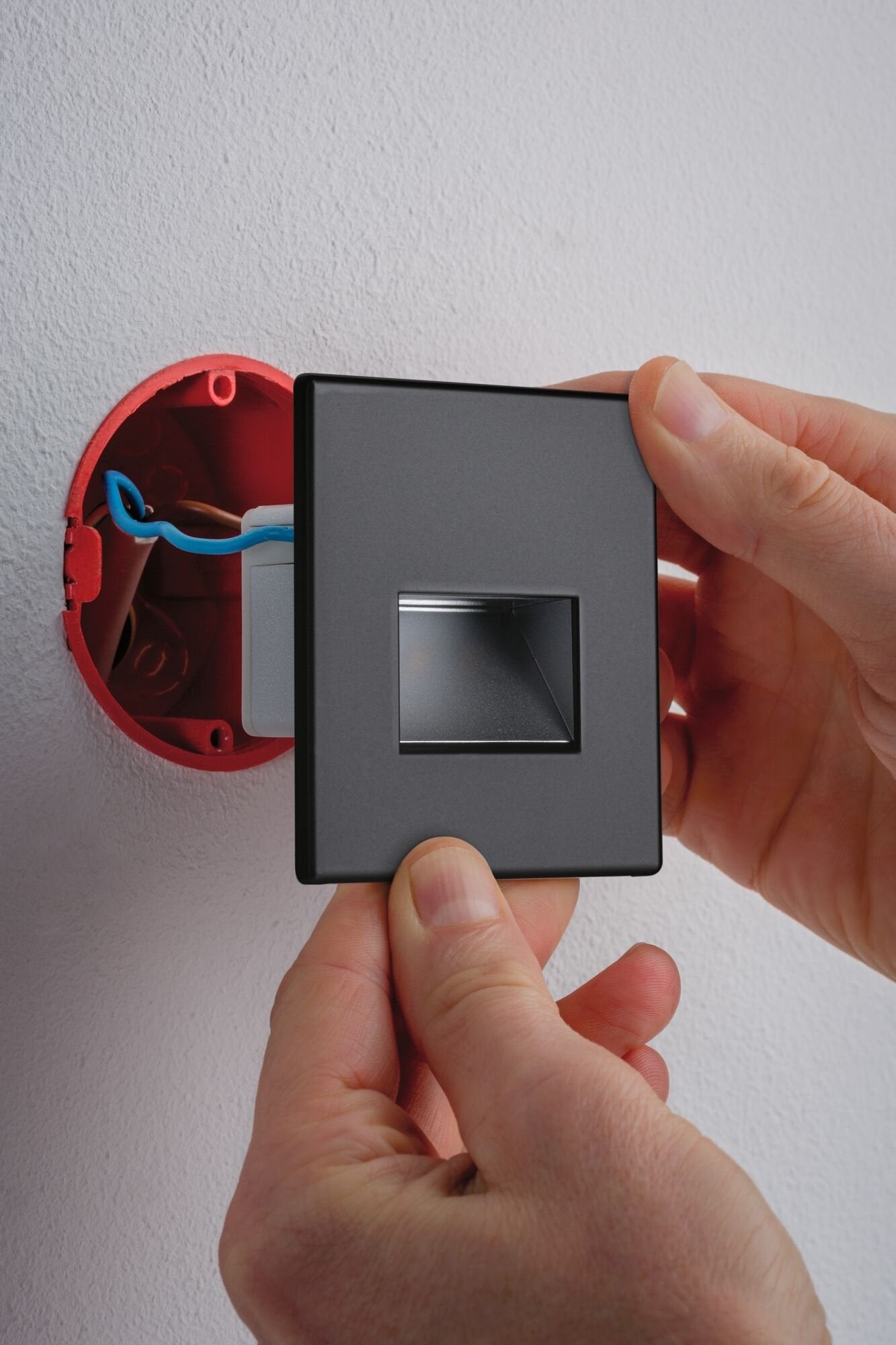

- For standard device installation boxes with a diameter of 60mm
| Dimensions | |
|---|---|
| Cavity depth | 15mm |
| Installation depth | 30mm |
| Dimension (height x width x depth) | H: 80 x W: 80 x D: 5 mm |
| Installation opening | 55mm |
| shape | square |
| Minimum cavity depth | 15mm |
| Design and material | |
|---|---|
| Color | black Matt |
| material | plastic |
| power consumption | |
|---|---|
| Energy efficiency class (Spektrum AG) | G |
| lifespan | |
|---|---|
| lifespan | 20,000 hours |
| Rated service life | 20000 hours |
| Light properties | |
|---|---|
| color temperature | 2700K |
| Beam angle | 100° |
| Rated luminous flux (lumens) | 50 lm |
| Luminous flux LED module | 100 lm |
| Color temperature range | 2,700K |
| Beam angle LED module | 100° |
| Rated/useful luminous flux | 50 lm |
| Lamp properties | |
|---|---|
| assembly | 1.2W |
| Technology | LED |
| Equivalent to incandescent lamp | 12.8W |
| Bulbs included | ✓ |
| Number of equipment | 1x |
| Protection class | Protection class II |
| Interchangeability | 3 Light source is not replaceable, the lamp must be replaced.|6 Control gear is not replaceable, the lamp must be replaced. |
| absorbed power | 1.4W |
| Dimensions |
Length: 80 mm Width: 80 mm Height: 80 mm |
| Color | matte black |
| Kelvin Kelvin describes the colour temperature: lower values look warmer, higher values cooler. | 2700 |
| Light source | including |
| Lumen Lumens indicate how much light the source emits. More lumens mean a higher light output. | 50 |
| IP rating The IP rating describes protection against solids and water. Suitability also depends on where the light is installed. | IP20 |
| Protection class | Protection class II |
| Information according to the EU Product Safety Directive | Paulmann Licht GmbH Quezinger Feld 2 31832 Springe Germany info@paulmann.de |
5-year Paulmann warranty – reliable & fair
Even with the best quality, issues can occasionally occur. To make sure you are covered, the German manufacturer Paulmann provides a 5-year warranty on its products in addition to statutory warranty rights.
The warranty covers proper functionality under correct installation and normal use (max. 4,500 operating hours per year). Excluded are rechargeable batteries, batteries and replaceable light sources.
If a problem should occur, simply contact us – we will handle the process directly with Paulmann for you.
➜ View the official Paulmann warranty conditions
Note: your statutory warranty rights naturally remain unaffected.
