Paulmann SKU: 92940

LED recessed panel Areo IP44 square 120x120mm 6.5W 418lm 3000K nickel matt dimmable

Sale price23,70 € Tax included.

Shipping calculated at checkout

On average, delivery takes 2-4 days

Automatic deduction at the checkout

Produktinformationen

LED recessed panel Areo IP44 square 120x120mm 6.5W 418lm 3000K nickel matt dimmable

The square Areo LED recessed panel, with an edge length of 12 centimeters and an output of 8 watts, is characterized by its particularly narrow bezel and dimming function. The matte nickel-colored plastic housing is particularly lightweight, making it particularly easy to install and maintain.
  • Made of easy-care plastic
  • For 230V direct connection
  • IP protection: IP44 - splash-proof
  • LED bulb (permanently installed) included in delivery
  • Color temperature: 3000K - Warm white
  • Dimmable

Specification:

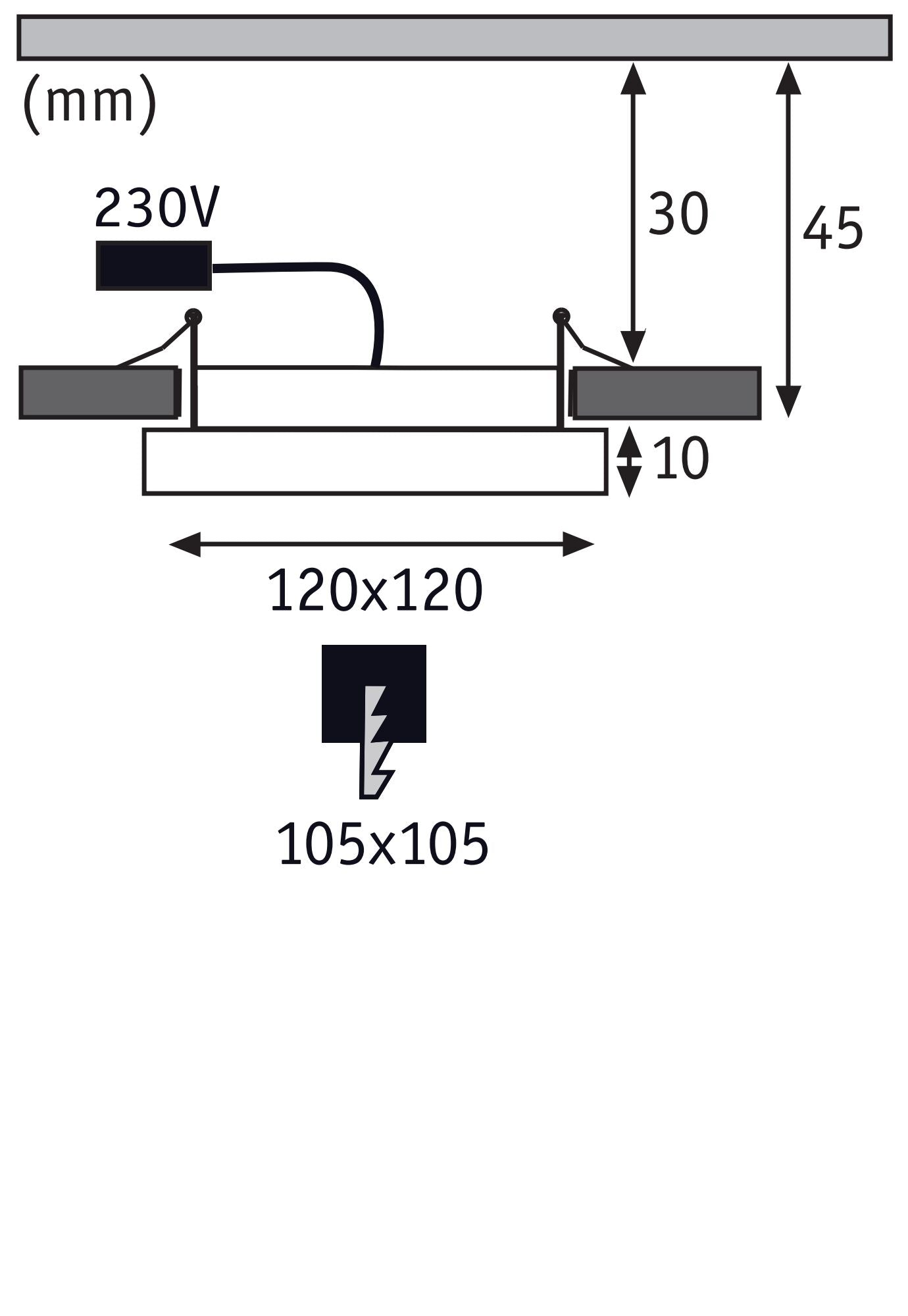

Dimensions
Installation opening 2 105 mm
Cavity depth 20 mm
Installation depth range 35 mm
Dimensions (height x width x depth) H: 10 x W: 120 x D: 120 mm
Installation opening 105 mm
form square
Minimum cavity depth 20 mm
Design and material
Stainless steel Stainless steel
Color matt nickel
material plastic
Assembly
Installation location recommendation Ceiling mounting
Energy consumption
Energy efficiency class (Spektrum AG) F
life
life 30,000 hours
Light properties
Color temperature 3000 K
Nominal luminous flux 418 lm
Luminous flux LED module 630 lm
Color temperature range 3000 K
Lamp properties
Assembly 6.5 W
Technology LED
IP protection IP44 ceiling mounting
Dimmable with dimmer R+C for electric transformer+230V lamps
Including light bulbs Yes
Total width 120 mm
Equivalent to incandescent lamp 50 W
Number of components 1x
Protection class Protection class II
Exchangeability 3 Light source is not replaceable, the luminaire must be replaced.|6 Control gear is not replaceable, the luminaire must be replaced.
Power consumption 8 W
Markings
MM character MM character
WEEE Reg. No. DE 39236390
Dimensions Length : 10 mm
Width : 418 mm
Height : 10 mm
Dimmable Yes
Color matt nickel
Kelvin 3000
Light source including
Lumen 418
IP rating IP44
Protection class Protection class II
Information according to the EU Product Safety Directive Paulmann Licht GmbH Quezinger Feld 2 31832 Springe Germany info@paulmann.de
