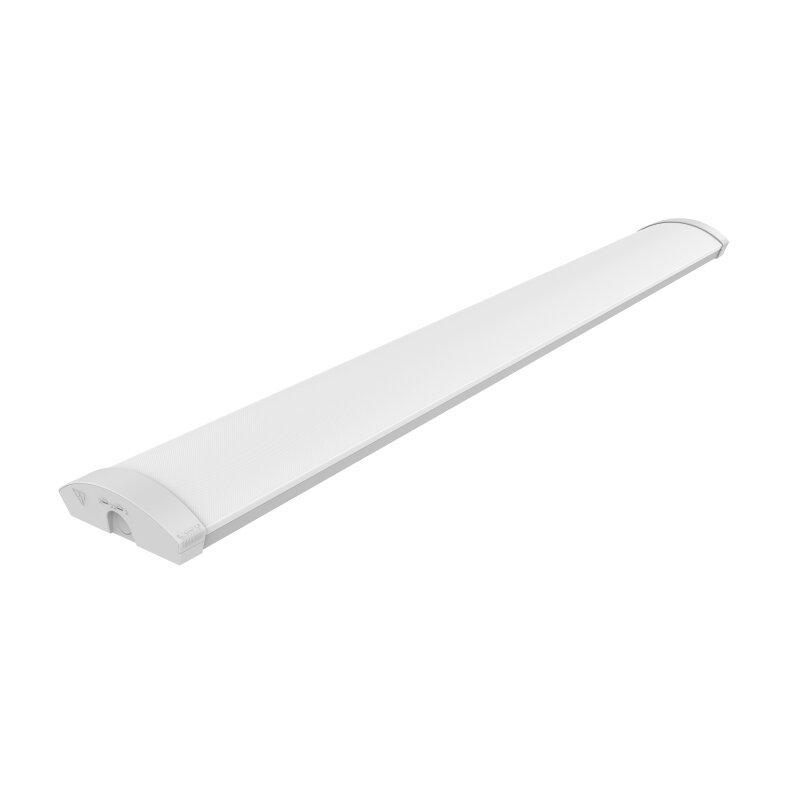

DOTLUX LED surface-mounted light SOFTEDGE 23W/29W/35W/40W COLORselect POWERselect IP44 1200mm
Product information
DOTLUX SOFTEDGE LED surface-mounted luminaire – Versatile professional luminaire with COLORselect & POWERselect
The DOTLUX SOFTEDGE LED surface-mounted luminaire impresses with maximum flexibility, uniform illumination, and high-quality workmanship. Thanks to innovative features such as COLORselect and POWERselect, the light color and output can be individually adjusted to any environment—perfect for offices, hallways, stairwells, and public buildings.
Advantages of DOTLUX SOFTEDGE at a glance
-
Professional light distribution:
Large illuminated area with ceiling brightening effect ensures homogeneous and pleasant illumination. -
Glare-free & color-stable:
High-quality, prismatic PMMA diffuser (IK07) is non-yellowing and guarantees uniform, glare-free light. -
Flexible performance:
Thanks to POWERselect, you can choose between 23 W / 29 W / 35 W / 40 W – a light for all performance requirements. -
Variable light color:
With DOTLUX COLORselect the desired color temperature can be easily set: 3000 K / 4000 K / 6000 K . -
Easy installation:
Tool-free quick connection terminal with integrated strain relief , through-wirable for multiple lights. -
Flexible assembly:

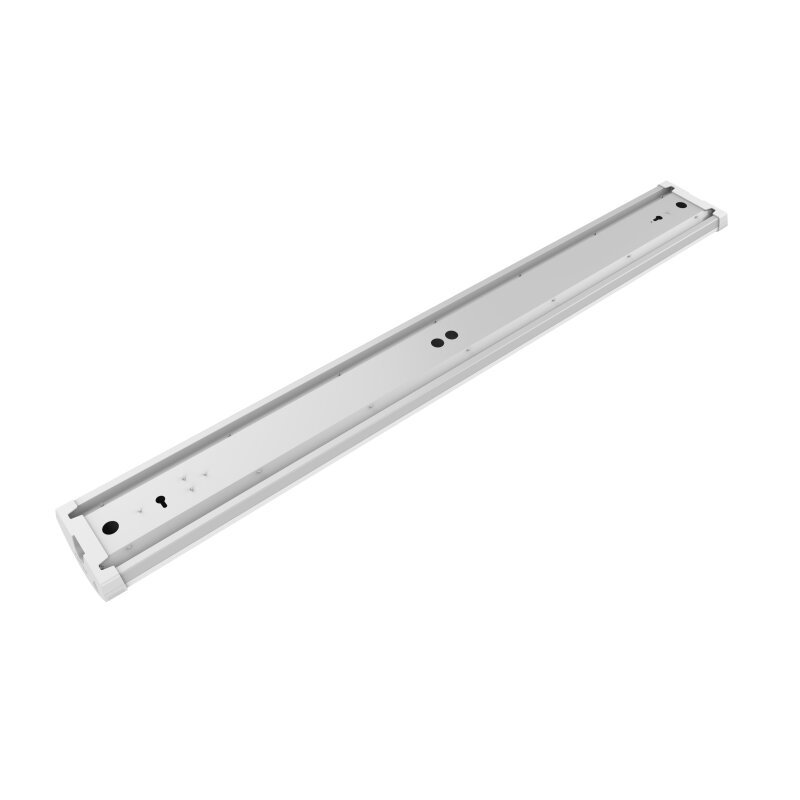

Four different mounting options and rear or front cable entry – ideal for new builds and renovations. -
Safe & robust:
IP44 protection class – dust and splash-proof, suitable for demanding interiors. -
Central battery compatible:
Also suitable for emergency lighting systems.
Colors & Variants
Available in 1200 mm length , with selectable light color (3000 K / 4000 K / 6000 K) and power (23 W / 29 W / 35 W / 40 W) .
Housing color: white (RAL9016) for a timeless, professional appearance.
Ideal for
-
Offices & Conference Rooms
-
Corridors, staircases & entrance areas
-
Schools, hospitals & public buildings
-
Commercial and industrial use
Conclusion: One lamp – all possibilities
The DOTLUX SOFTEDGE is the perfect combination of performance, flexibility, and design. With selectable light color and output, it offers maximum adaptability and easy installation. Discover it now at lightnox.de – with fast delivery and expert advice!
| Dimensions |
Length: 1195 mm |
| Dimmable | No |
| Kelvin Understanding light colour Kelvin describes light colour: the lower the value, the warmer the light appears. 1,800 KExtra warm 2,700–3,000 KWarm white 4,000 KNeutral white 6,500 KDaylight white The colour bar is a guide. Actual light colour may vary depending on the luminaire and screen display. | 3000/4000/6000 |
| Lifetime | L70/ 150000h, L80/ 100000h, L90/ 50000h |
| Light source | including |
| Socket | LED |
| Voltage | 186 - 240 V |
| Watt | 23 |
| IP rating Which IP rating fits? The IP rating describes protection against solid objects and water. IP20Dry indoor roomsFor example, living rooms or bedrooms. No protection against water. IP44Splash resistantTypical for suitable bathroom locations or sheltered outdoor areas. IP65Dust-tight & water-jet resistantFor areas exposed to more water, such as façades or gardens. Not for immersion. Suitability depends on the installation location and manufacturer approval. Special electrical zones apply in bathrooms, especially around showers and baths. | IP44 |
| Protection class | 1 |
| Information according to the EU Product Safety Directive | DOTLUX GmbH Richard-Stücklen-Str. 7 91781 Weißenburg in Bayern Germany Phone: +49 9141 – 4051- 0 Fax: +49 9141 – 4051- 999 Email: info@dotlux.de |
