Chart Asym 1.6 LED Recessed Floor Light
Product information
Wever & Ducré – Chart Asym 1.6 LED Recessed Floor Light

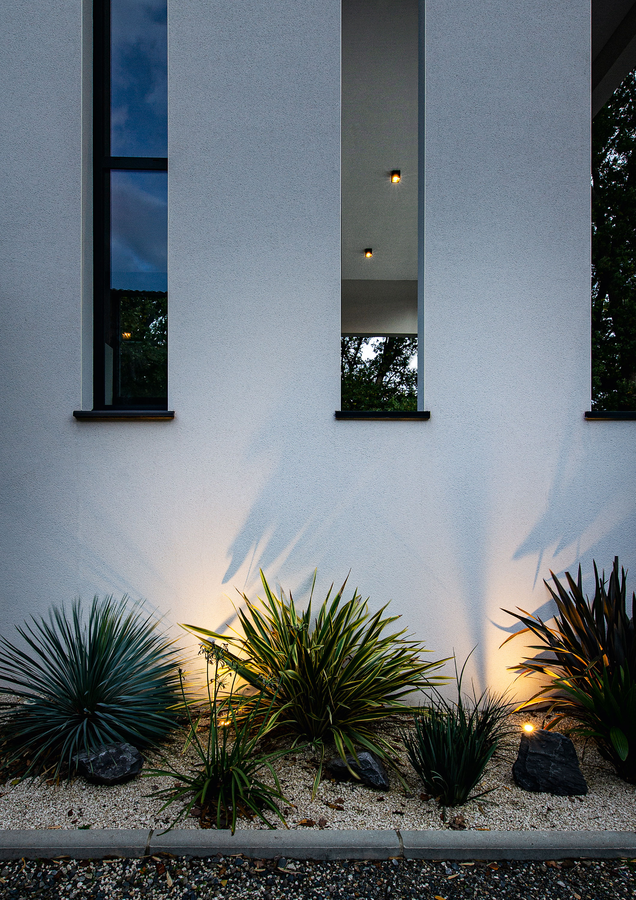

The Chart Asym 1.6 LED is the square model in the Asym series, combining minimalist design with a distinctive architectural lighting effect. Its asymmetrical light distribution is ideal for highlighting façades, walls and patios.
- Asymmetrical lighting effect: Creates focused architectural accents instead of a uniform downlight.
- Low-glare comfort: Optimized optics provide pleasant light with reduced glare.
- Robust and weather-resistant: IP67 protects against dust and water, while IK08 provides impact resistance for demanding outdoor use.
- Direct connection: Operates directly at 230 V without an additional driver.
- Installation depth: 185 mm for stable integration into the ground.
- Recommended accessory: A matching recessed floor housing is available separately for a clean, durable installation.
The Wever & Ducré Chart Asym 1.6 LED combines a clear square form with controlled asymmetric illumination for architectural outdoor lighting.
| Dimensions |
Length: 160 mm Width: 160 mm Height: 139 mm |
| CRI value See colours naturally CRI (also Ra) describes how faithfully a light source renders colours. The reference value is 100. Lower CRIColours may look distorted or duller. CRI 90+Very good colour rendering Illustrative comparison, not an exact CRI simulation. Actual appearance depends on the light spectrum, materials and screen display. | 90 |
| Beam angle | Asymmetric |
| Dimmable | Yes |
| Color | Gray |
| Material | Edelstahl 304 |
| Kelvin Understanding light colour Kelvin describes light colour: the lower the value, the warmer the light appears. 1,800 KExtra warm 2,700–3,000 KWarm white 4,000 KNeutral white 6,500 KDaylight white The colour bar is a guide. Actual light colour may vary depending on the luminaire and screen display. | 3000 K |
| Lifetime | L70 / 55000h |
| Light source | including |
| Lumen Understanding brightness The higher the lumen value, the more light the luminaire emits. approx. 400 lmapprox. 1,000 lmfrom 2,000 lm A rough guide: How bright a room feels also depends on its size and the number of lights. | 845 |
| Socket | LED |
| Voltage | 220 - 240 V |
| Watt | 15.7 |
| IP rating Which IP rating fits? The IP rating describes protection against solid objects and water. IP20Dry indoor roomsFor example, living rooms or bedrooms. No protection against water. IP44Splash resistantTypical for suitable bathroom locations or sheltered outdoor areas. IP65Dust-tight & water-jet resistantFor areas exposed to more water, such as façades or gardens. Not for immersion. Suitability depends on the installation location and manufacturer approval. Special electrical zones apply in bathrooms, especially around showers and baths. | IP67 |
| Protection class | 2 |
| Information according to the EU Product Safety Directive | WEVER & DUCRÉ BV Spinnerijstraat 99/21 8500 Kortrijk BELGIUM office@weverducre.com |
5-year premium warranty – quality you can trust
Wever & Ducré stands for outstanding workmanship, modern design and durable materials. To ensure long-lasting enjoyment, the manufacturer grants a 5-year premium warranty on its products – well beyond statutory warranty rights.
This warranty is a clear commitment to quality: you are not just buying a designer light, but a durable part of your interior that you can rely on for many years.
➜ View the official warranty conditions (PDF)
Note: your statutory warranty rights naturally remain unaffected.
