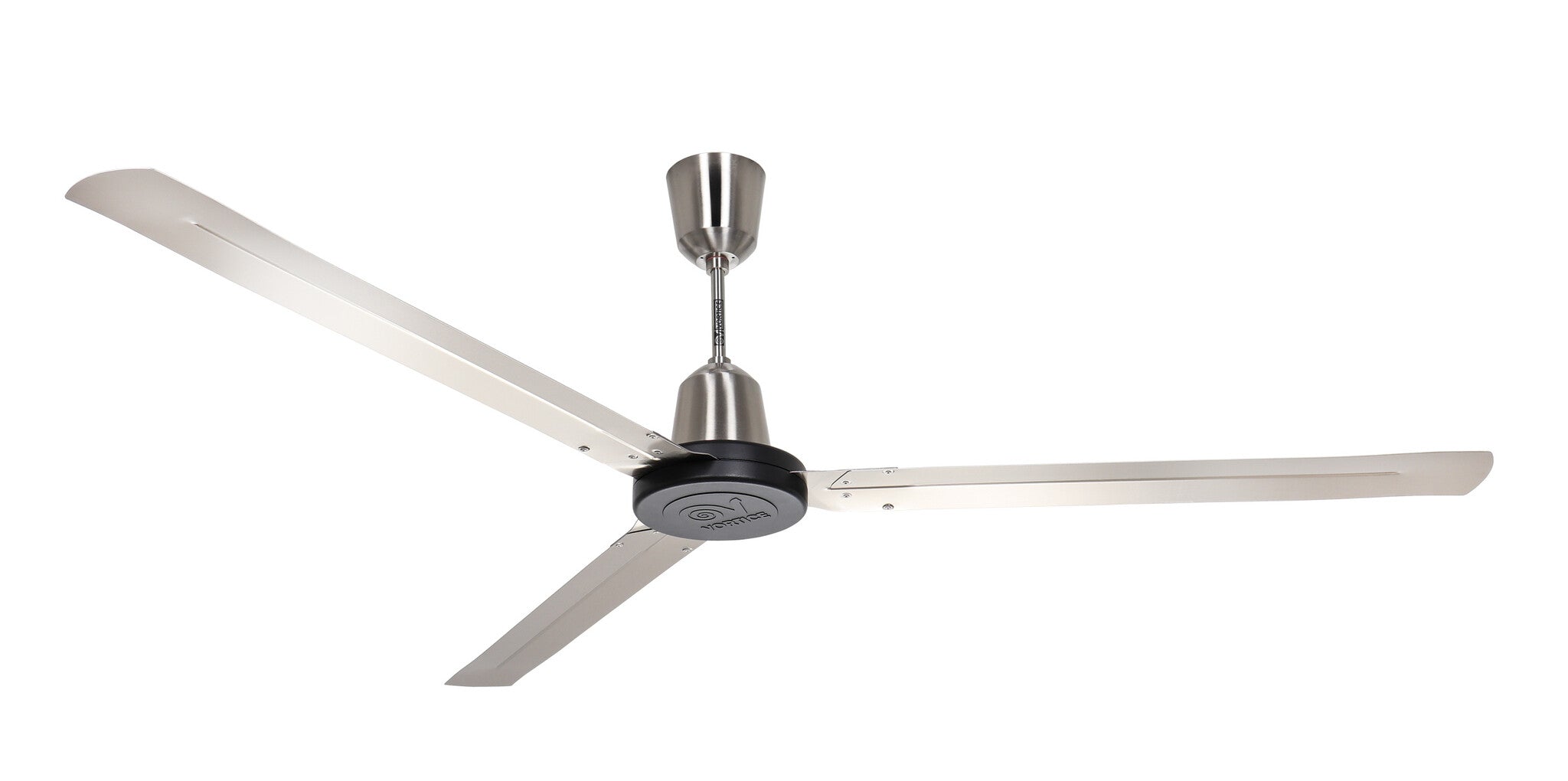

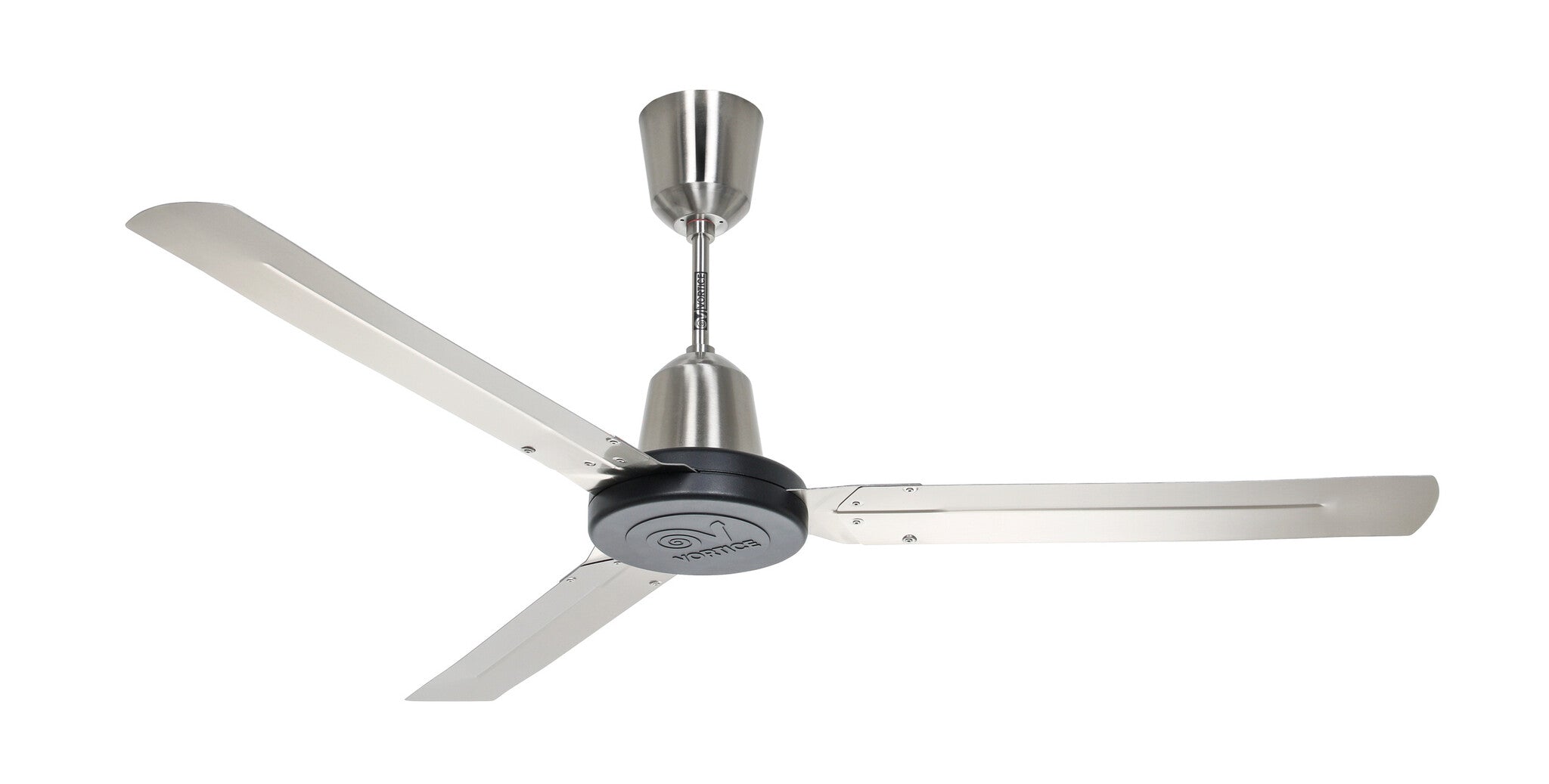

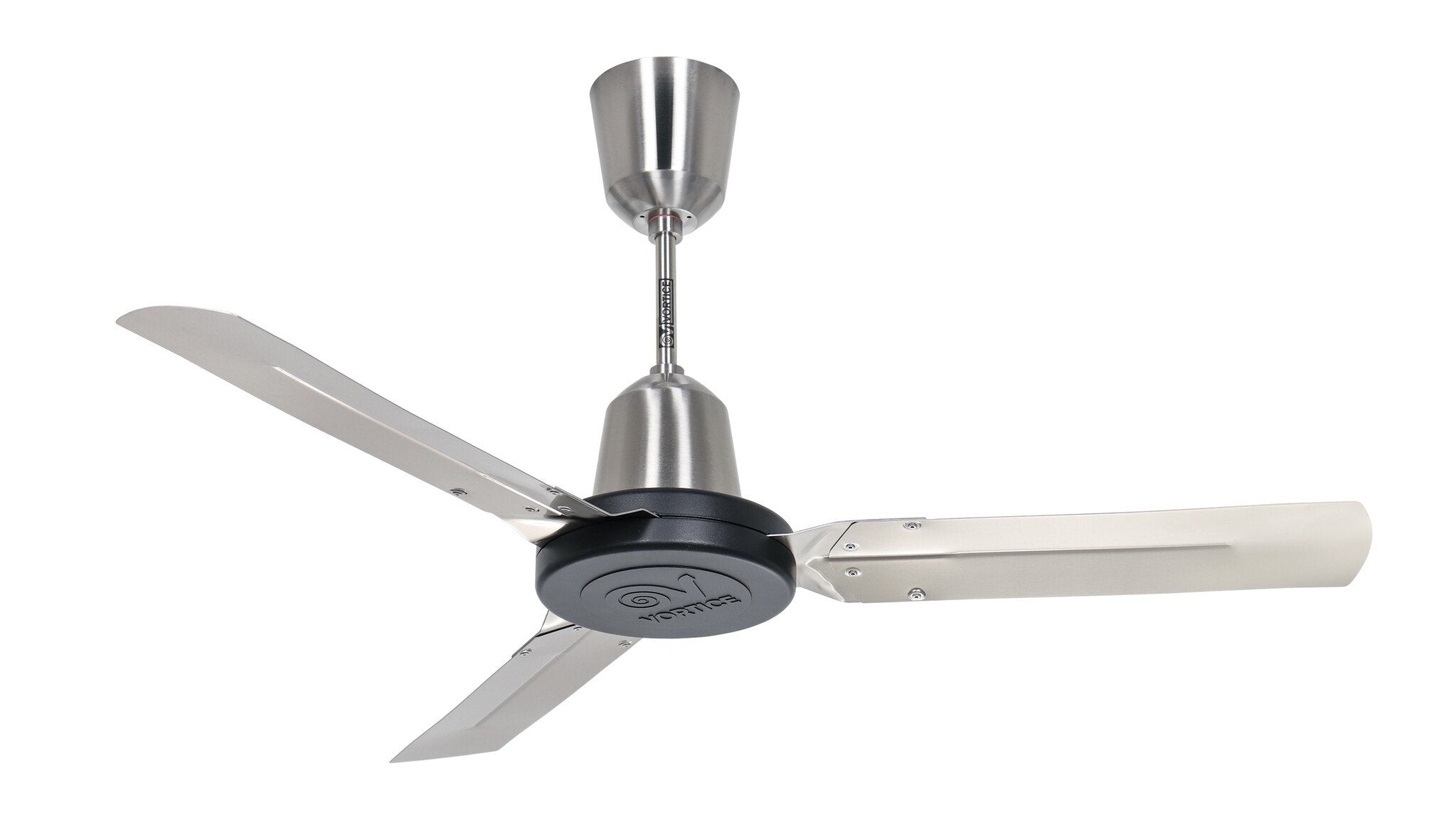

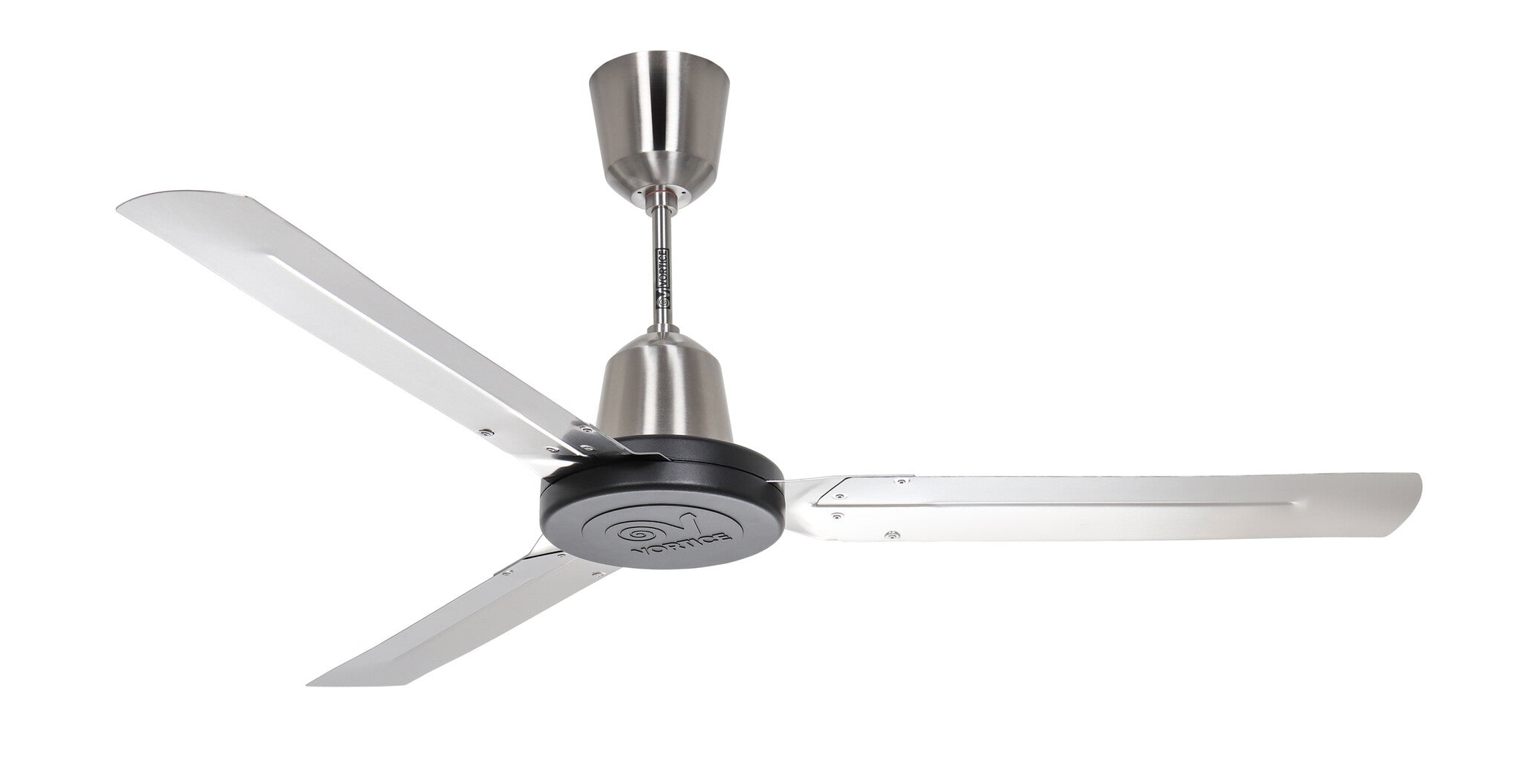

Ceiling fan Nordik HD inox

Ceiling fan NORDIK HEAVY DUTY INOX – made for extreme conditions

The NORDIK HEAVY DUTY INOX is the ideal choice for demanding environments where heat, humidity, dust or dirt are part of everyday operation. Developed for industrial use, this ceiling fan impresses with an enormous airflow of up to 22,050 m³/h and an especially robust construction.

Thanks to its high-quality motor housing made from die-cast aluminum with hammer-finish anthracite powder coating, as well as blades and ceiling components made from 304 stainless steel, the fan is perfectly suited to aggressive environments, even at continuous operating temperatures of up to 55 °C. The IP55 protection rating ensures resistance to dust and splash water.

Available in four different sizes (Ø 120–200 cm), the NORDIK HEAVY DUTY INOX is designed for large room volumes. The newly developed suspension with four screws and integrated stainless-steel safety cable ensures secure mounting, even under challenging conditions. Control is available via wall control or the TDA control system (sold separately).

Product features:

• Model: NORDIK HEAVY DUTY INOX

• Diameter: 120–200 cm, depending on version

• Motor power: 24–85 W

• Voltage: 230 V / 50 Hz

• Speed (max.): 186–233 rpm

• Number of speeds: 1, optionally 3–5 with control

• Weight: 7.3–9.1 kg, depending on model

• Airflow: up to 22,050 m³/h

• Housing material: die-cast aluminum, powder-coated

• Blades, downrod, canopy: 304 stainless steel

• Direction of rotation: forward/reverse operation controllable

• Installation: with 4-point suspension and stainless-steel safety cable

• Protection class: I

• Protection rating: IP55 (dust- and splash-water protected)

• Insulation class: H

• Continuous operation: up to 55 °C ambient temperature

• Options: wall control or TDA control (separate), longer downrods available
